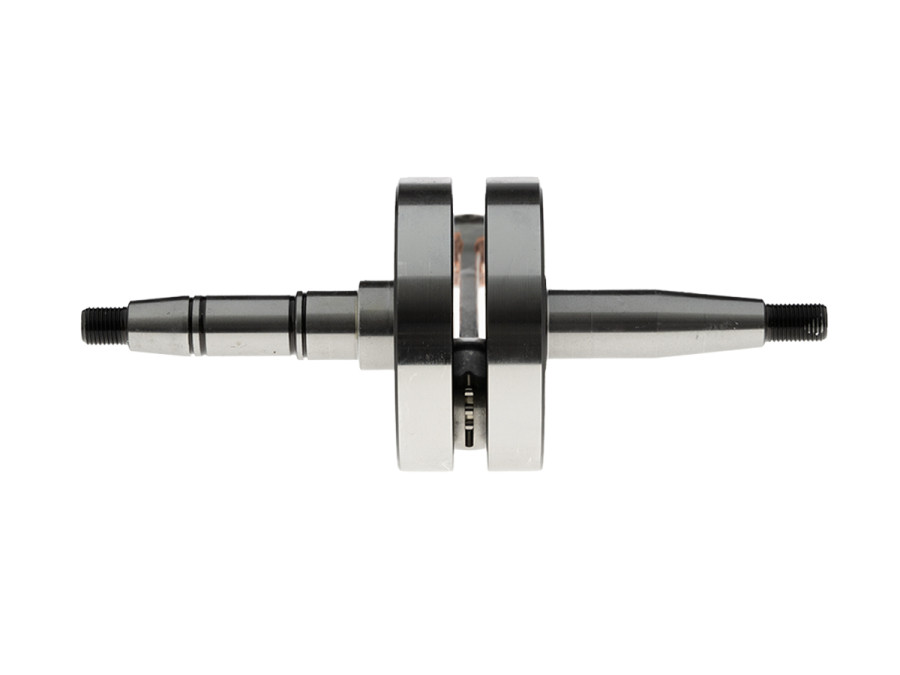

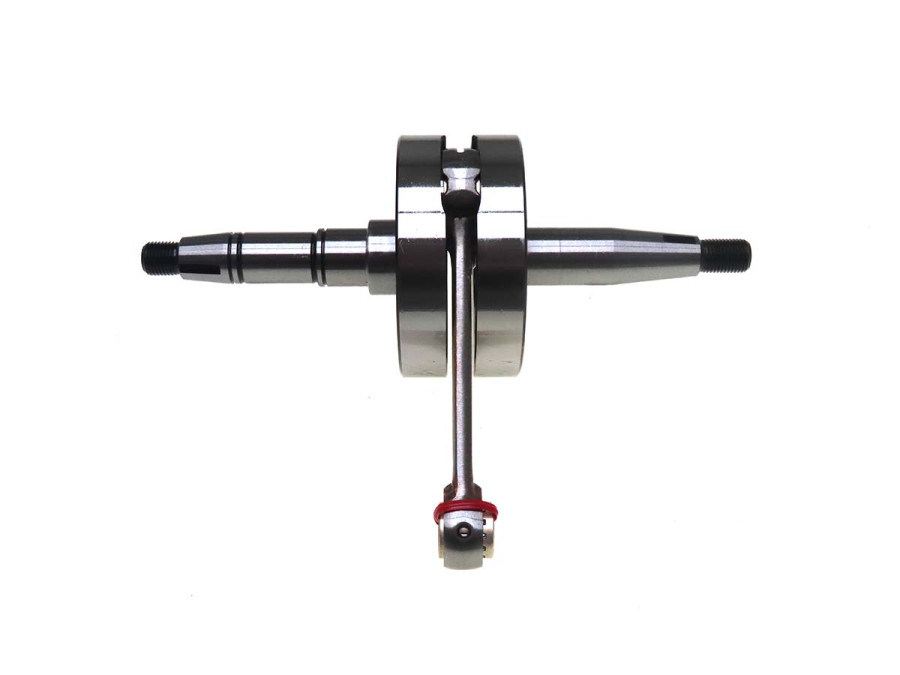

Crankshaft Puch Maxi E50 old model high-end 44mm (+1 mm stroke)

Crankshaft Puch Maxi E50 old model high-end (+1 mm stroke)

• Crankshaft old model
• Big-end 16mm
• Piston pin 12mm
• Complete with needle bearing
• For E50 Engine
• Stroke 44mm (+1mm)

Information

• Suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
• This special crankshaft has 1 mm more stroke, which is an absolute world first in the Mofatuning range!
• The extra hub gives your engine more compression and tickles the last horsepower out of the cylinder.

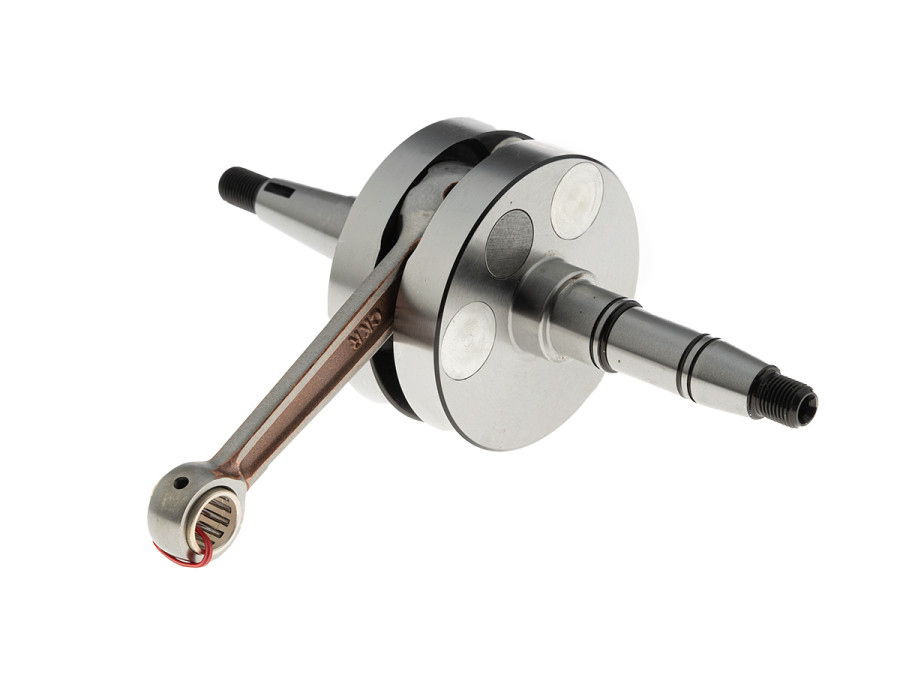

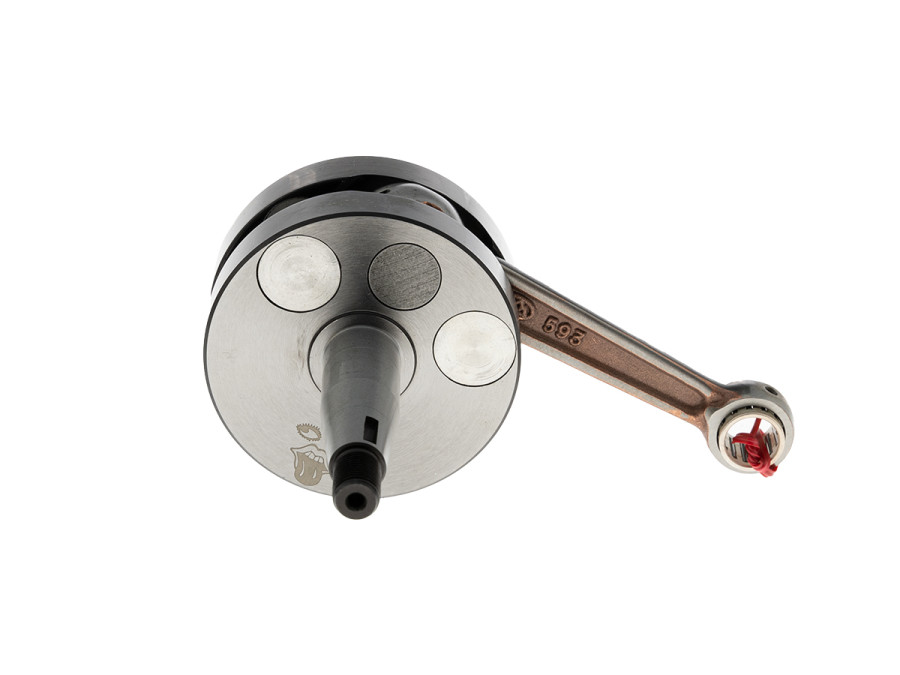

• High-quality and precisely fitting, 990g heavy full crankshaft, which has proven itself in a variety of stress tests. Designed for use in high power engines. All balancing holes in the cheeks were closed with aluminum inserts for maximum pre-compaction. The massive connecting rod is provided with a Ø16 mm connecting rod. In addition, the conrod bearings are silver bearings, which have excellent emergency running properties.

Required parts (not included!)

• Bearing clutch side: 6203 NR old model
• Bearing ignition side: 6203 C3
• Seal set: E50 old model

When using this crankshaft, the following things should be noted:

• The use of a 1mm thick lifting plate (60060) is essential. You can find matching models below in the accessories. In addition, we recommend using sealant between the seal and the housing / cylinder. This can also be found below in the accessories.
• When installing, observe the crimping edge dimension (distance piston - cylinder head at TDC). This should not be less than 1 mm.
• Due to the longer stroke, the pressure in the crankcase increases. Therefore, the ignition-side oil seal should be glued with 2-component adhesive .
• Retracting the crankshaft: Run the engine for 30 minutes under light load with a slightly richer mixture.
