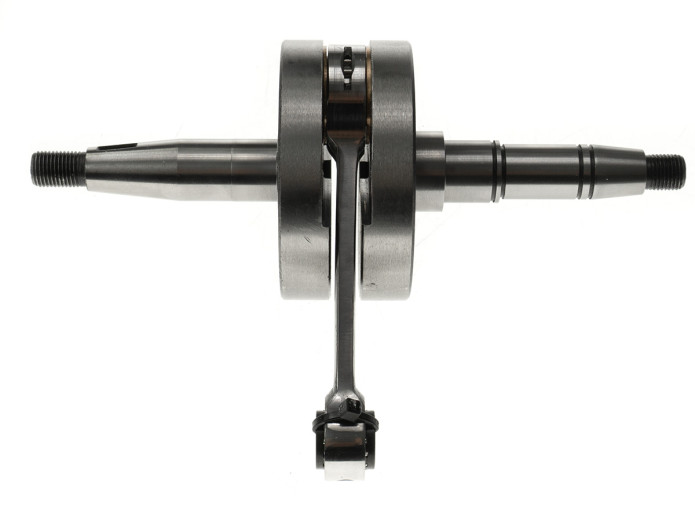

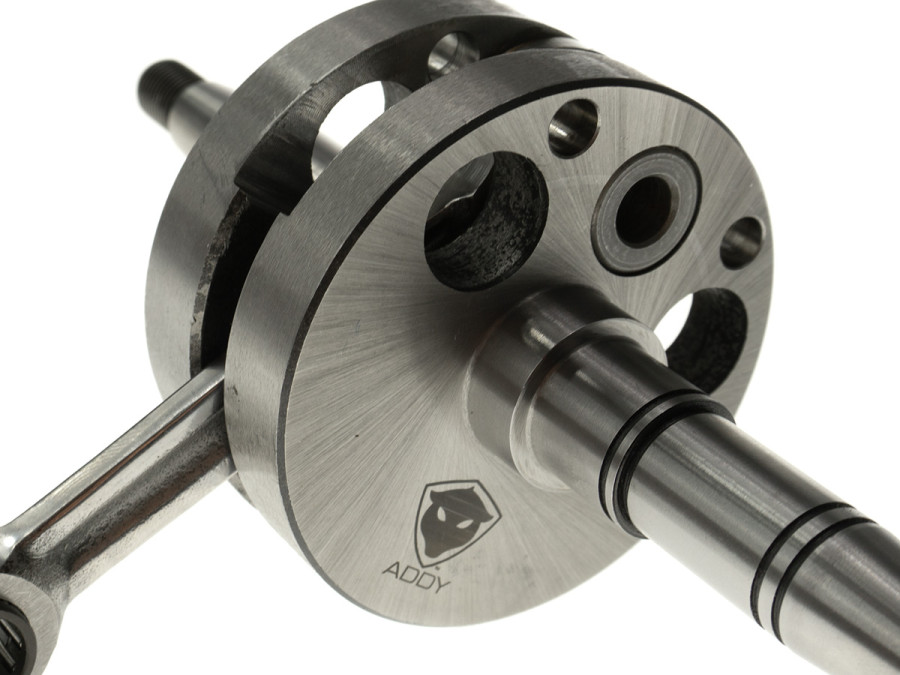

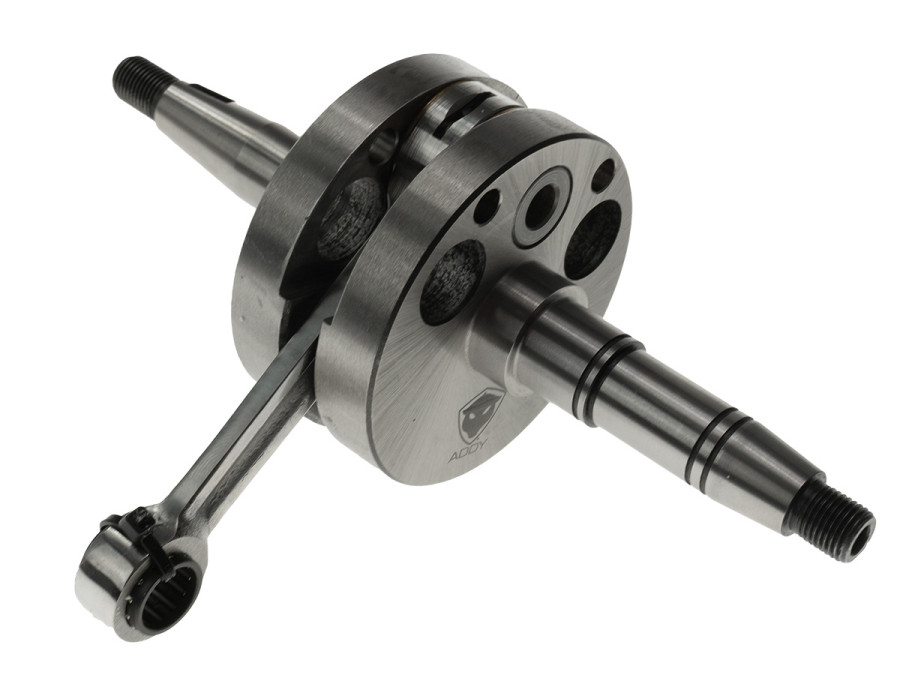

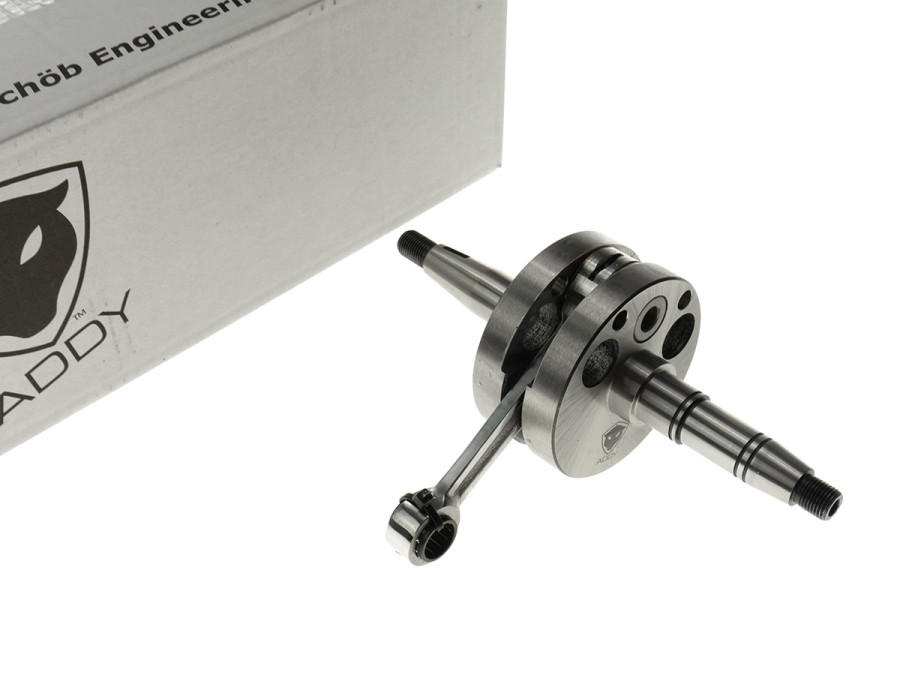

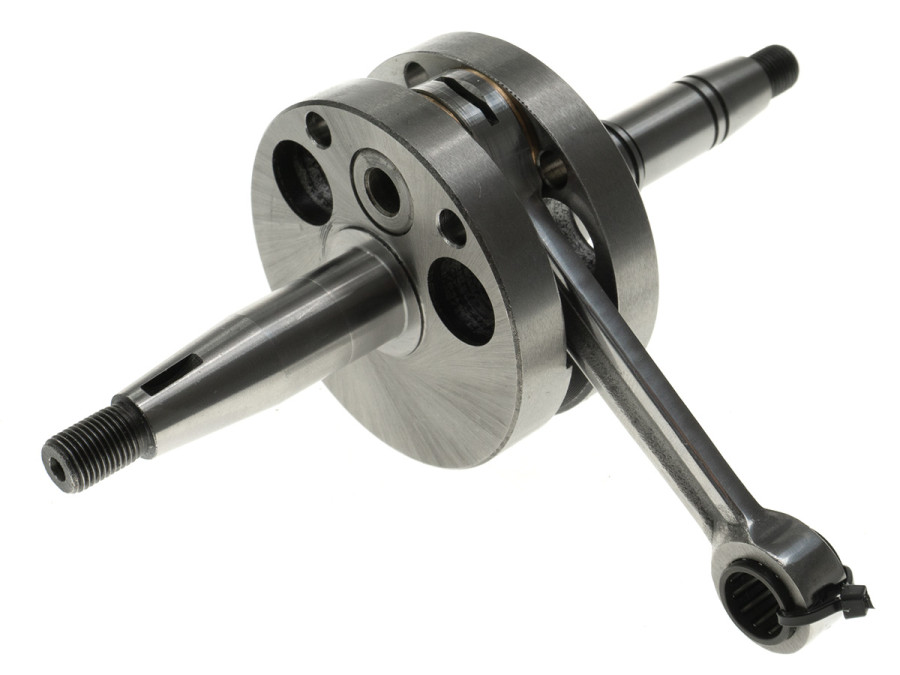

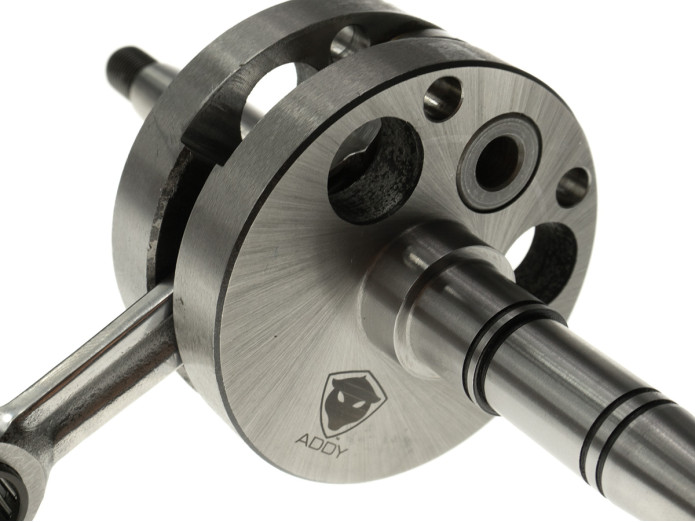

ADDY Tuning crankshaft Puch Maxi E50 / X30 high quality

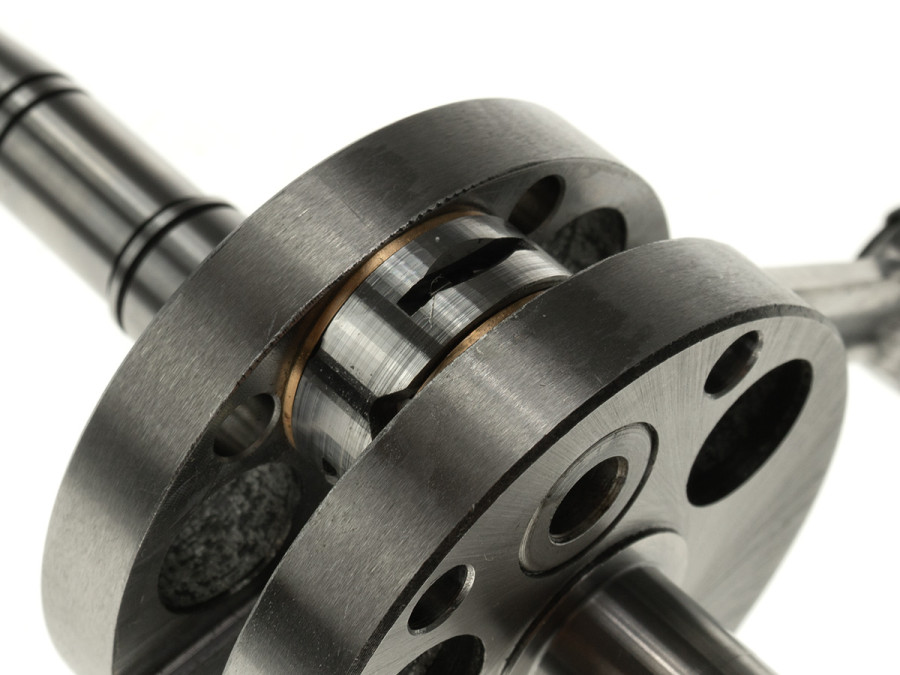

High quality crankshaft produced by ADDY engineering. The bigend is fitted with a high-quality bearing and then the crankshaft is balanced for maximum stability. The big-end bearing is enclosed with special fitting washers to minimise side play.
- Big-end 16mm
- Piston pin 12mm
- Complete with needle bearing
- For Puch E50 engine
- Super quality up to 15,000 rpm suitable.
- Stroke 43mm (standard)
- Advice: use high quality crankshaft bearings and seals
Dimensions:
- A: 14mm / 10⌀
- B: 53mm / 17⌀
- C: 34mm
- D: 9mm / 22⌀
- E: 15mm / 17⌀
- F: 40mm / 15⌀
- G: 10mm / 10⌀
- H: 70mm
- I: 7mm
- J: 15mm
- K: 90mm
- L: 15mm
