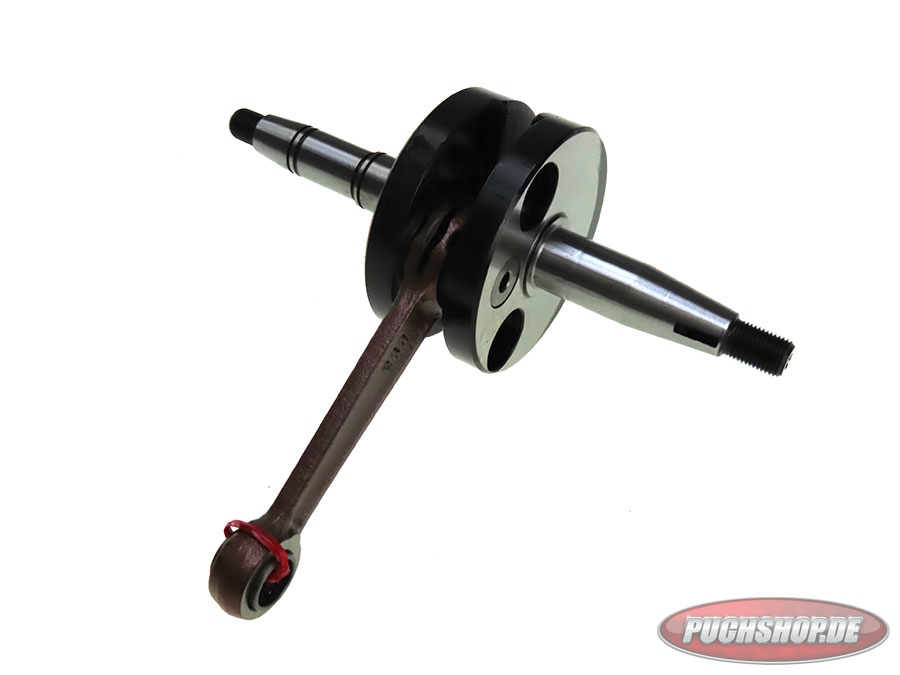

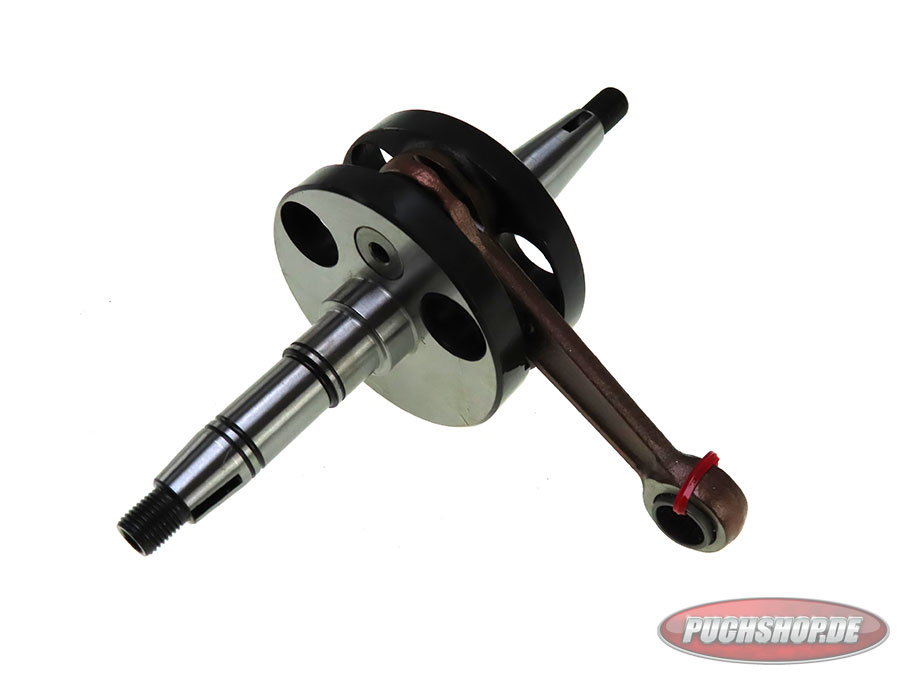

Crankshaft Puch Maxi E50 old model CM stock

CM crankshaft standard

• Crankshaft old model
• Big-end 14mm
• Piston pin 12mm
• Complete with needle bearing
• For E50 Engine
• Stroke 43mm

Dimensions:

• A: 14mm / 10⌀
• B: 53mm / 17⌀
• C: 34mm
• D: 9mm / 22⌀
• E: 15mm / 17⌀
• F: 40mm / 15⌀
• G: 10mm / 10⌀
• H: 70mm
• I:  5mm
• J: 15mm
• K: 90mm
• L: 14mm

Required parts (not included!)

• Bearing clutch side: 6203 NR old model
• Bearing ignition side: 6203 C3
• Seal set: E50 old model
