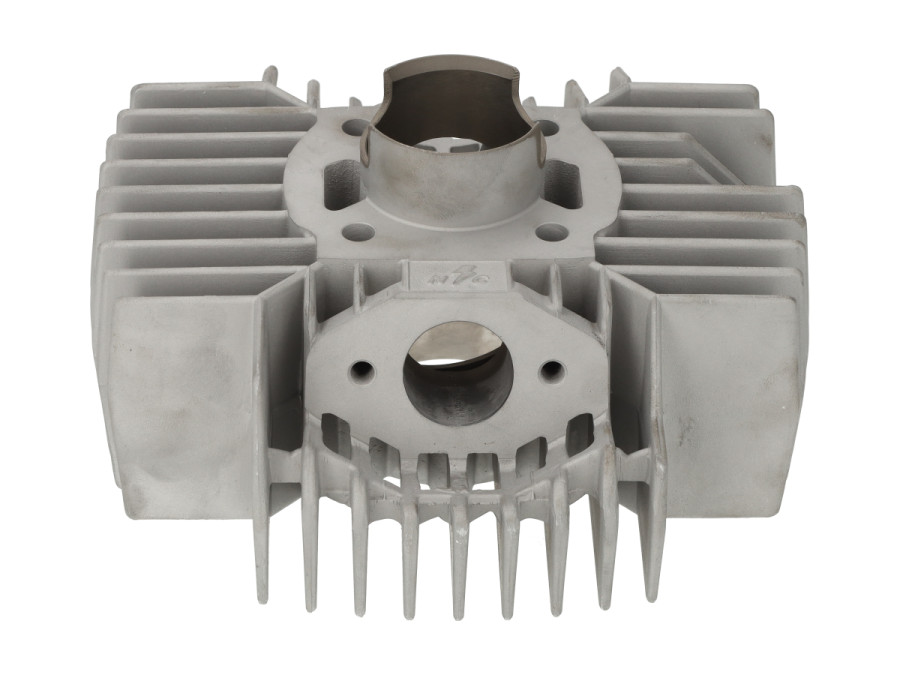

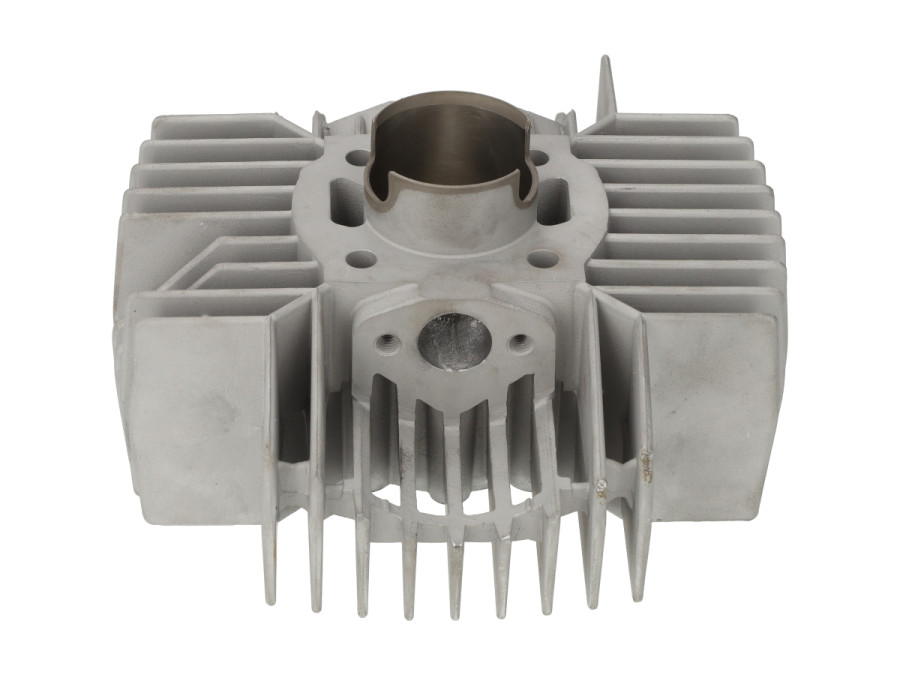

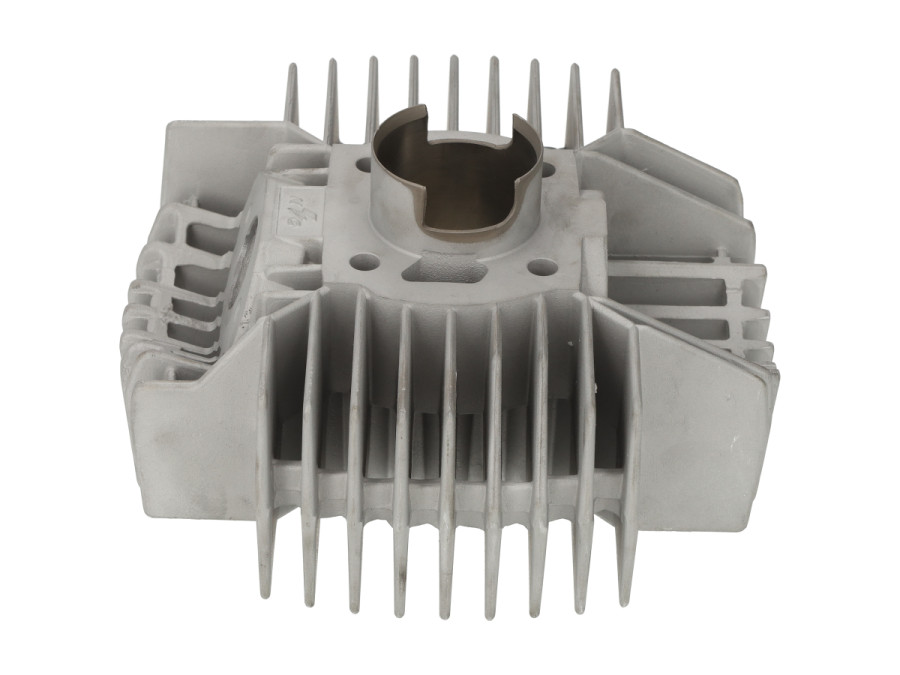

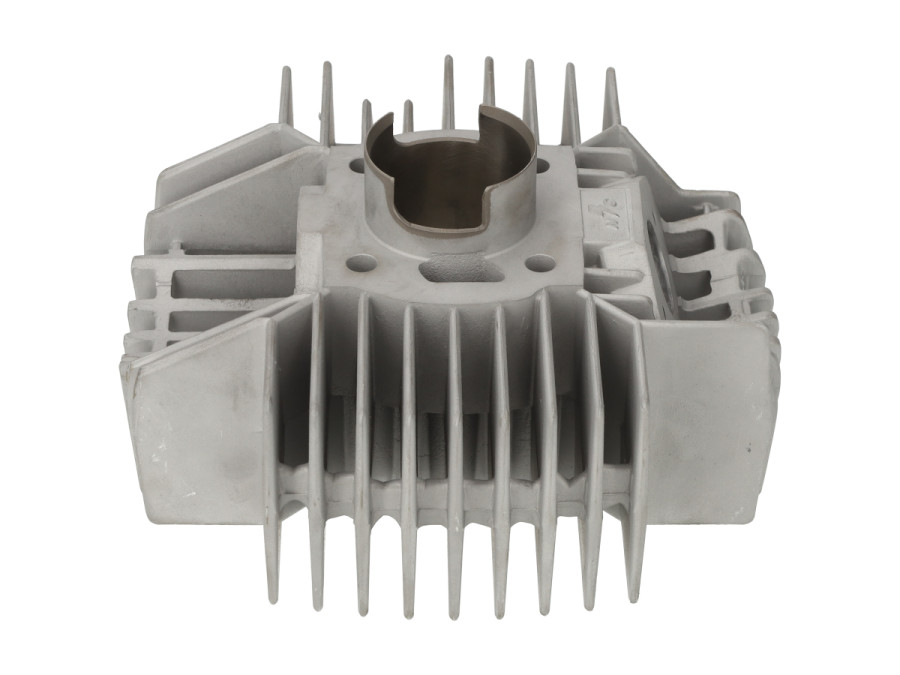

2nd chance cylinder 60cc Puch Monza / X50 / Magnum X aluminium NC

2nd chance Cylinder 60cc Puch Monza / X50 / Magnum X aluminium

• 40mm / 60cc
• Complete with piston (12mm pin)
• With gaskets
• aluminium nicasil
• Complete as picture
• Cylindersleeve outer diameter: 43mm
• Angled exhaust port
• The original packaging is damaged
• The cylinder has some marks but is unused

Attention!

Second chance products cannot be returned.

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 24mm
• F: 42mm
• G: M6
• H: 32mm
• I: 17mm
• J: 17mm
• K: 17mm

Measurements piston

• A: 4mm
• B: 25mm
• C: 24mm
• D: 12mm
