Cylinder 65cc NM Polini reed valve Puch Maxi, X30 and other models

-6%

-6%

€ 341,90 (6% discount)
€ 319,90
Ex Tax: € 264,38

The displayed price is without shipping costs
Read more about the European VAT rules

Directly available
Brand: Polini
Model: 10043

Quantity:

Worldwide shipping! Return in 14 days Afterpay is possible Customer review 4.84 / 5.00

Description

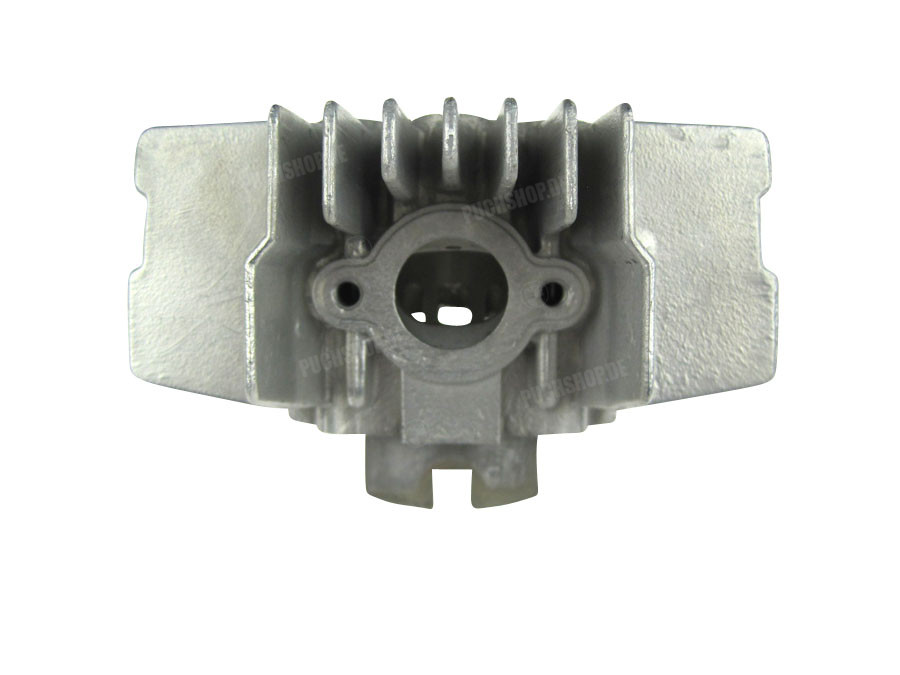

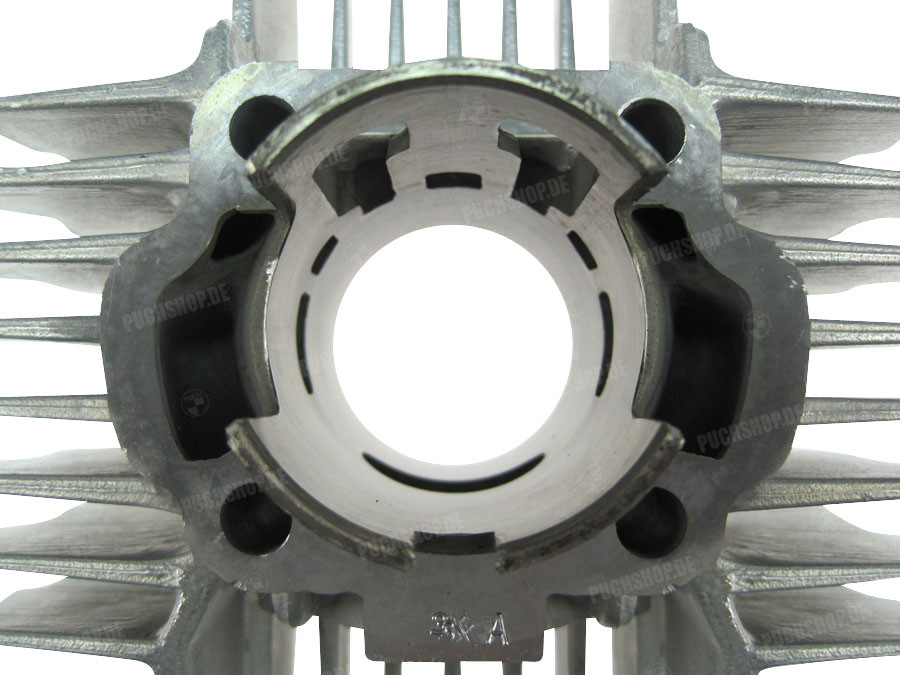

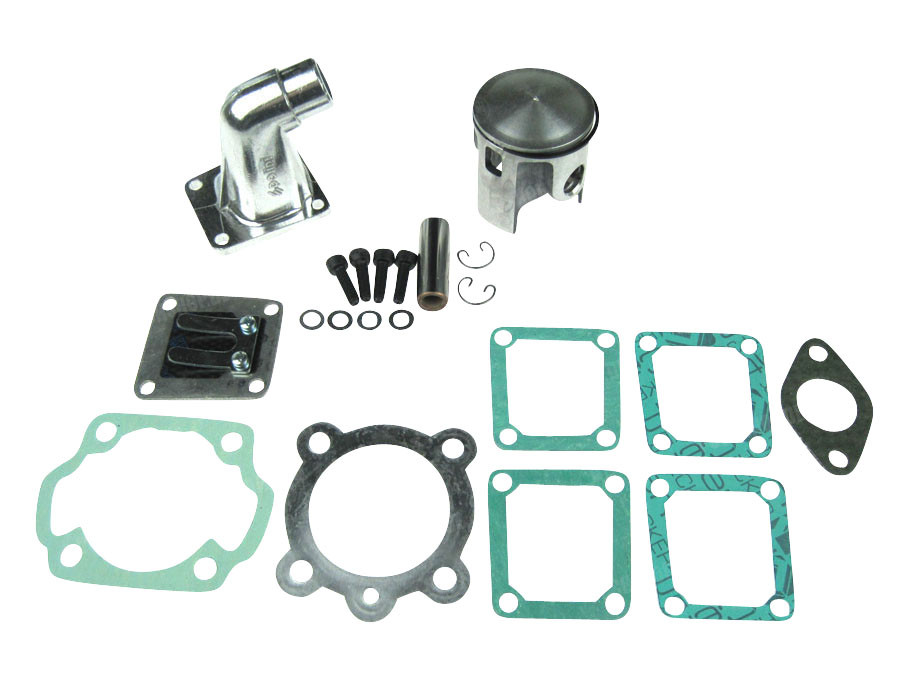

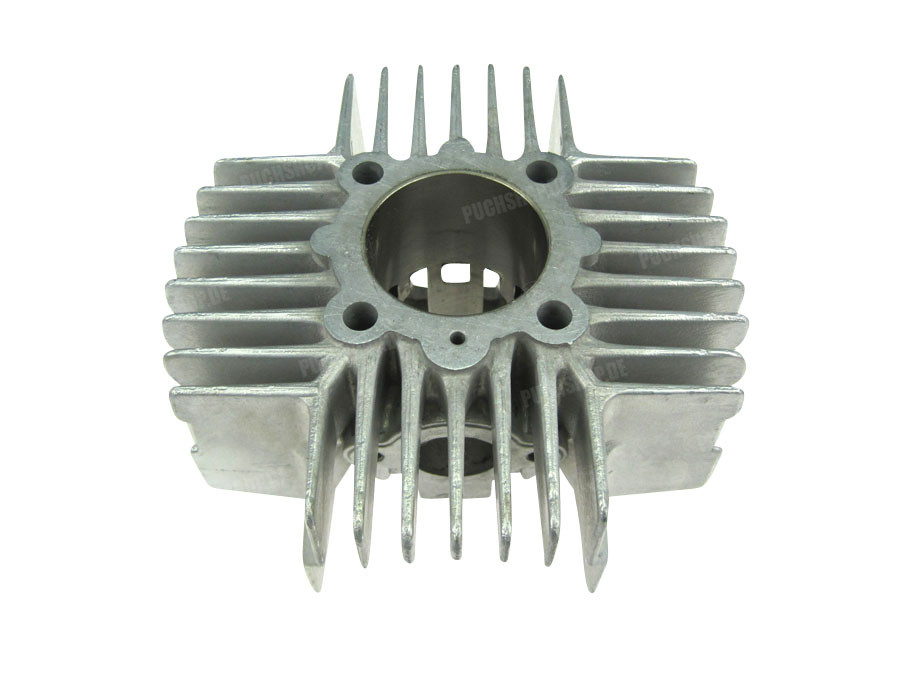

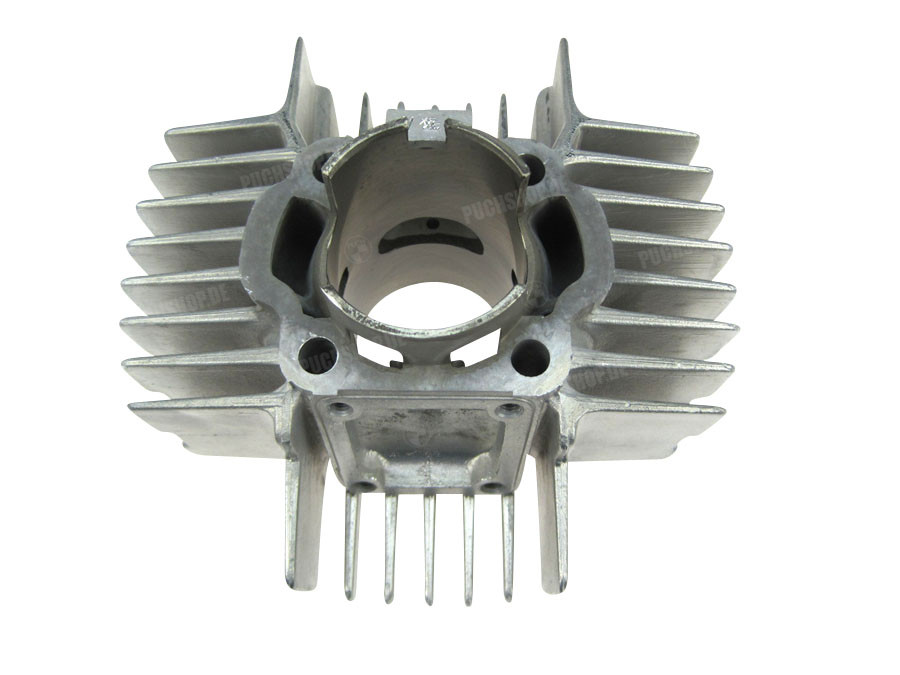

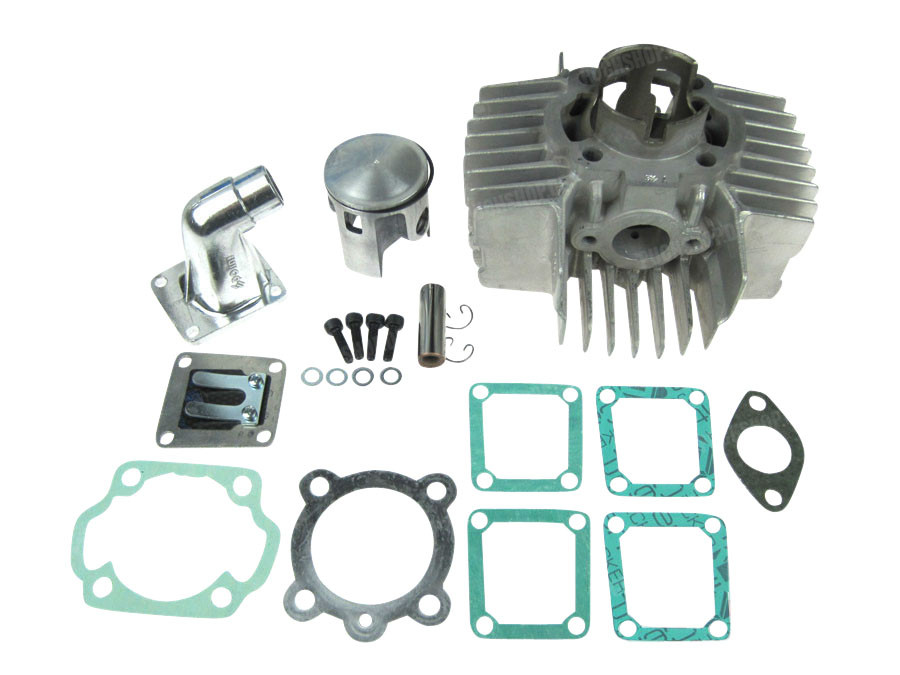

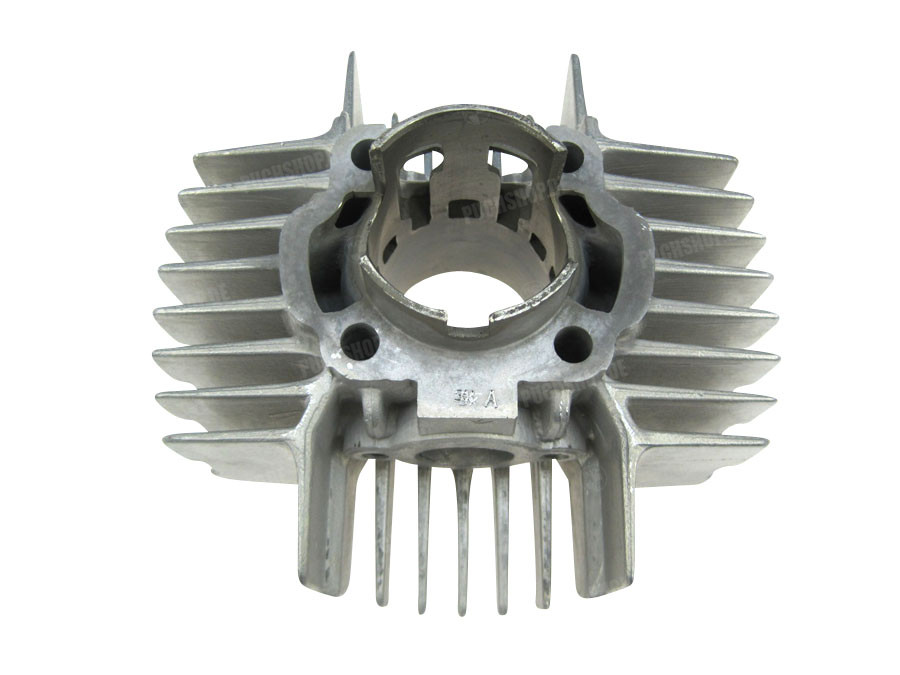

Polini 65cc (43.5mm) reed valve cylinder Aluminium, nicasil wall.

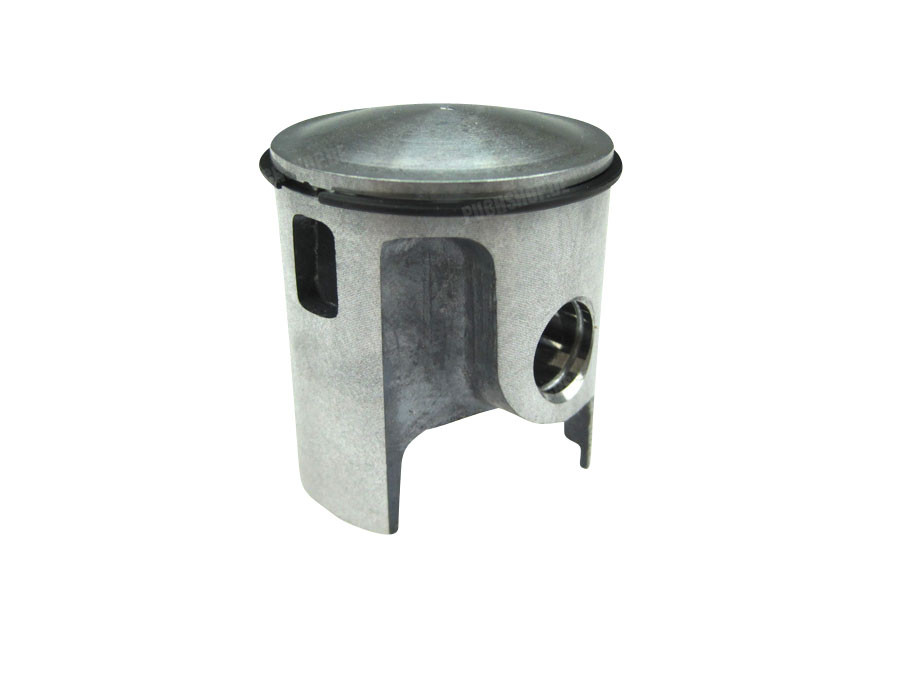

Piston (piston pin 12mm)

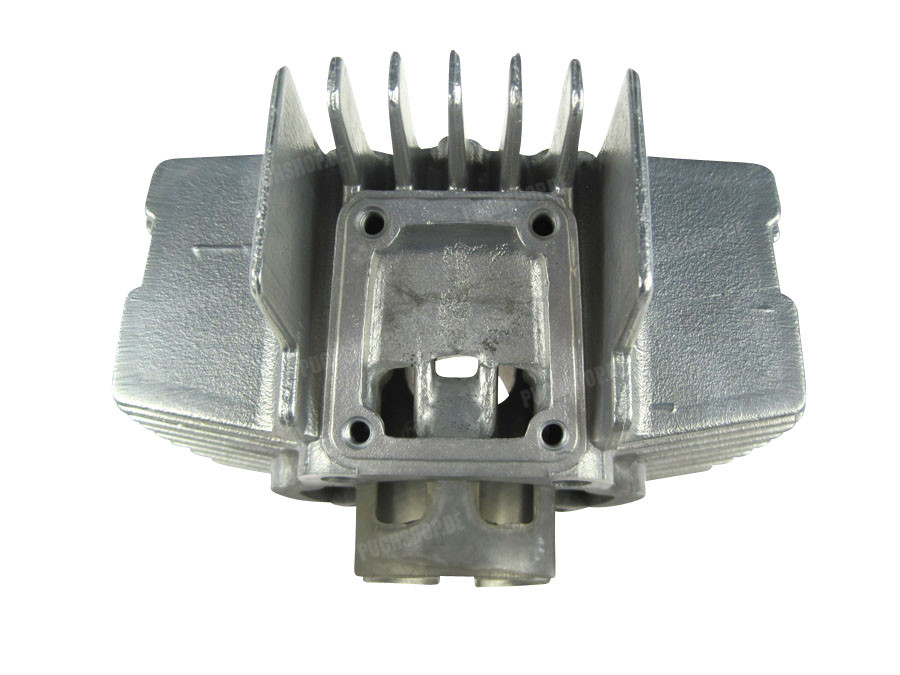

Reed valve
Manifold (20mm outer diameter)
Gaskets set included.
One of the fastest cylinders for Puch Maxi
Cylindersleeve outer diameter: 48mm

Attention! Very sensable cylinder!

Fit the cylinder with 8Nm, fit the gaskets in the intake pipe with liquid gasket and do not tighten too tightly. Then you will have a cylinder that lasts a long time and is very fast.

Before mounting
We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models
The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Measurements cylinder

A: 7mm
B: 44mm
C: M6
D: 68mm
E: 22mm
F: 42mm
G: M4
H: 36mm
I: 35mm
J: 38mm
K: -

Measurements piston

A: 4mm
B: 23mm
C: 24mm
D: 12mm

About Polini

Polini! Tuning your moped can be done in several ways. Tuning and modifying your moped lightly or heavily. With Polini for Puch, you always go one step further. Polini has been well-known in the moped and motorbike world for 80 years. Founded in Italy by Battista Polini in 1940, started with the idea that mopeds and motorbikes could be made better for racing than original. Engines and mopeds heavily tuned for racing with very high quality became a reality. Polini parts for Puch can be bought within each category. Polini makes cylinder sets for Puch, reedvalves, exhausts, ignitions, air filters for Puch, brake segments for Puch, carburetor, clutch for Puch, crankshaft, crankcases and gaskets. Unique parts like e.g. the Polini CP Carburettors, from 15mm clamp version to 21mm spigot can be bought at puchshop.de (Click here for our entire Polini range)

Description

Polini 65cc (43.5mm) reed valve cylinder Aluminium, nicasil wall.

Piston (piston pin 12mm)
Reed valve
Manifold (20mm outer diameter)
Gaskets set included.
One of the fastest cylinders for Puch Maxi
Cylindersleeve outer diameter: 48mm

Attention! Very sensable cylinder!

Fit the cylinder with 8Nm, fit the gaskets in the intake pipe with liquid gasket and do not tighten too tightly. Then you will have a cylinder that lasts a long time and is very fast.

Measurements cylinder

A: 7mm
B: 44mm
C: M6
D: 68mm
E: 22mm
F: 42mm
G: M4
H: 36mm
I: 35mm
J: 38mm
K: -

Measurements piston

A: 4mm
B: 23mm
C: 24mm
D: 12mm

About Polini

Product specifications Cylinder 65cc NM Polini reed valve Puch Maxi, X30 and other models

Brand:	Polini
Model:	10043
Cylinder / head
Cylinder displacement	65cc
Cylinder diameter	43.5mm
Cylinder model	New model
