Advise by Puch expertsCylinder 70cc OM Athena reed valve Puch Maxi, X30 and other models
- A few left in stock
- Brand: Athena
- Model: 10012
Description

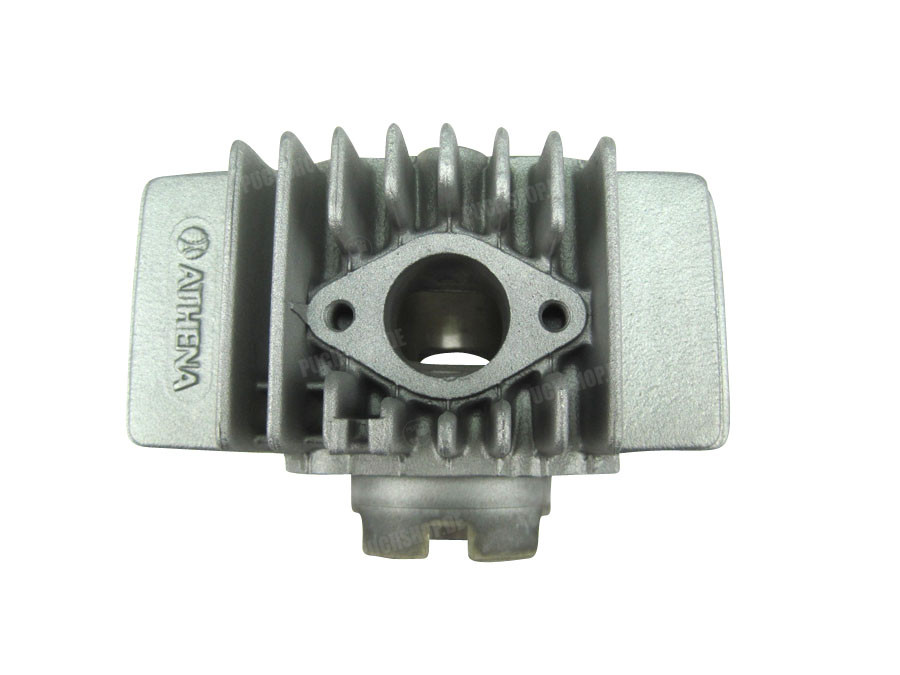

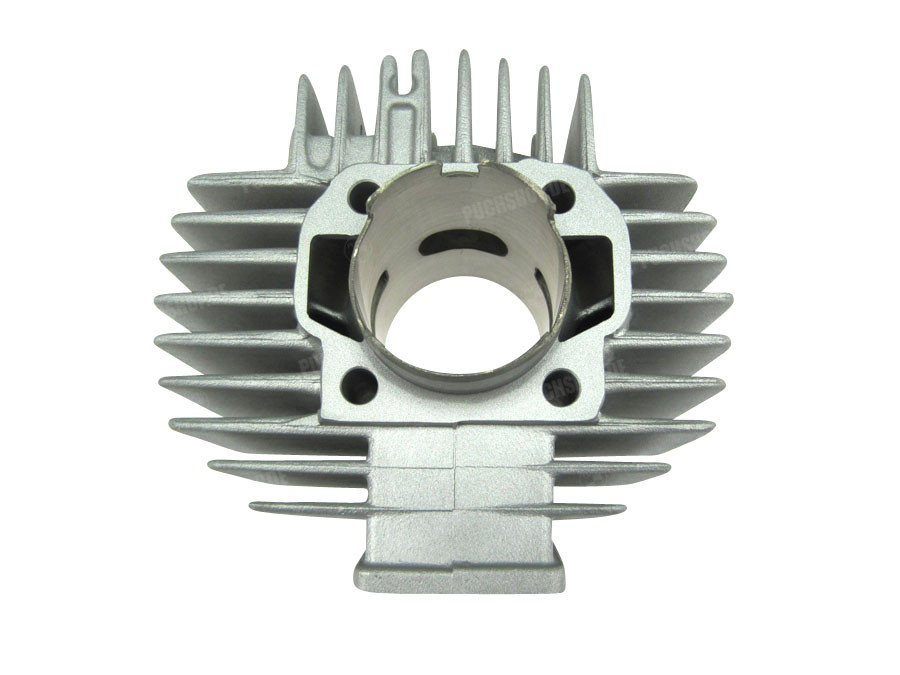

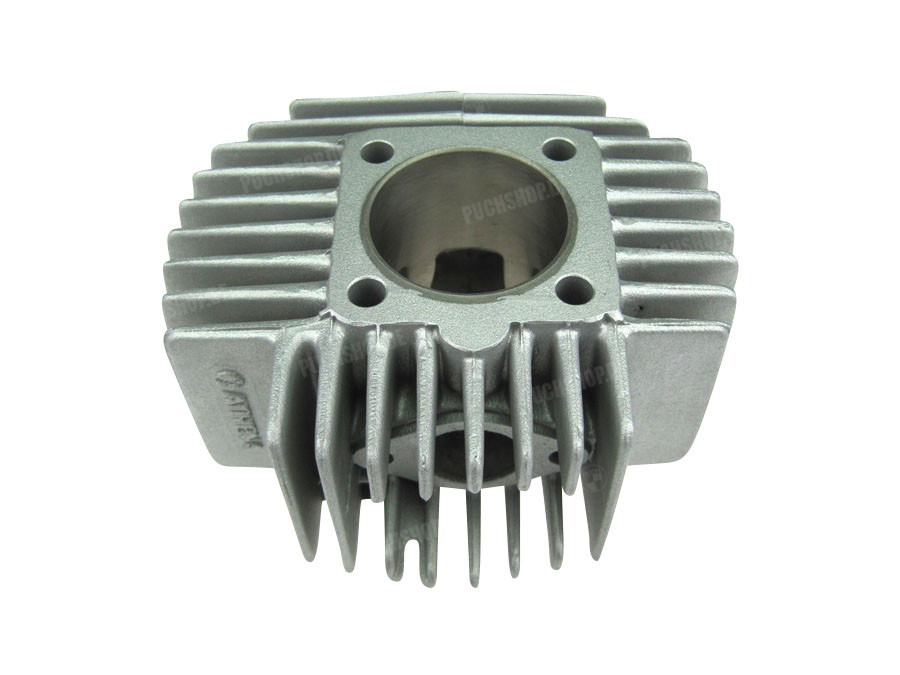

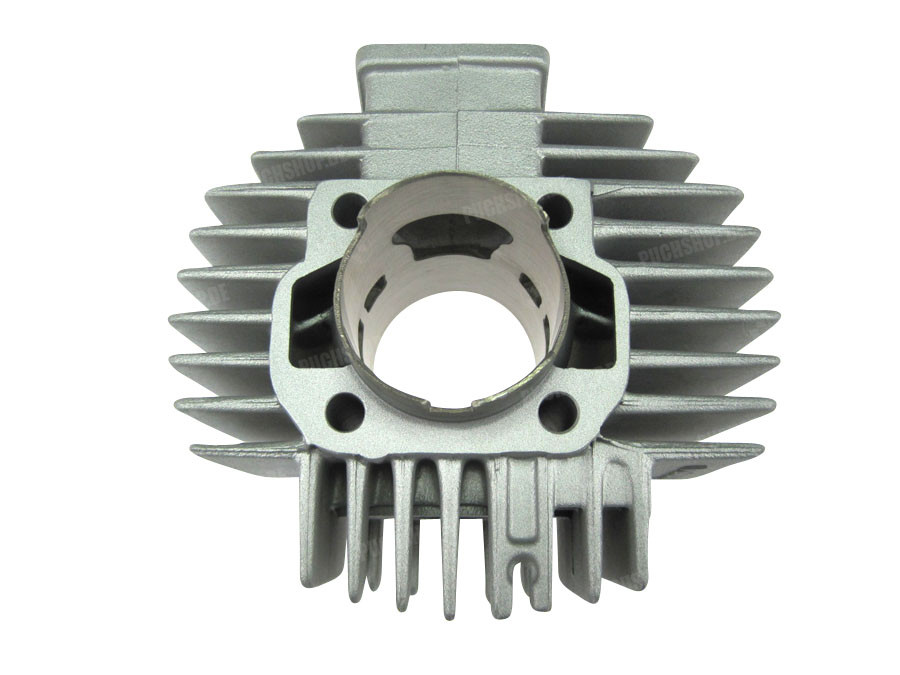

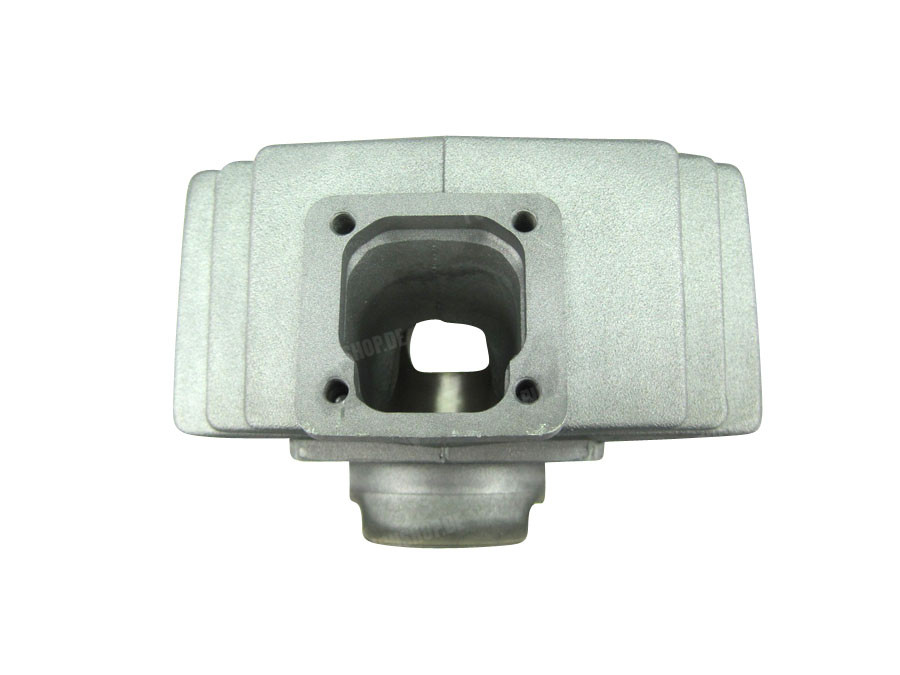

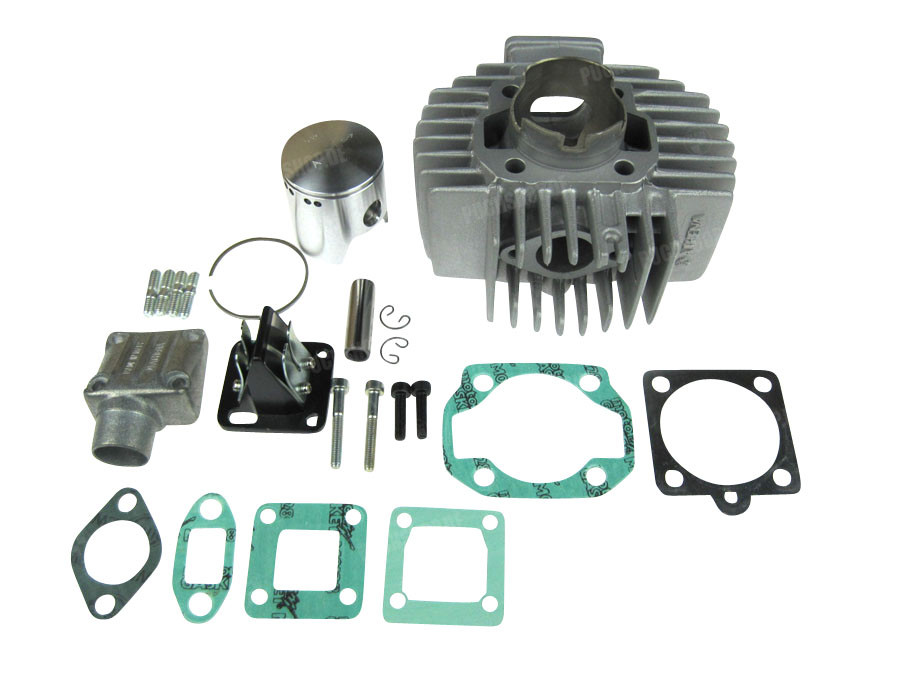

Athena 70cc Reed valve
- Athena 70cc (45mm) Aluminium, Nicasil wall

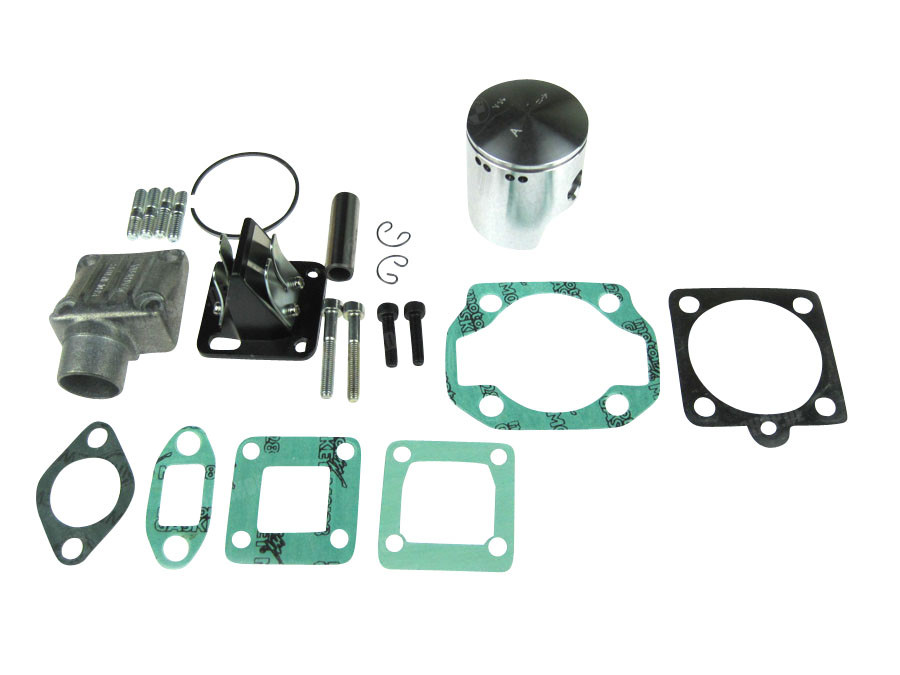

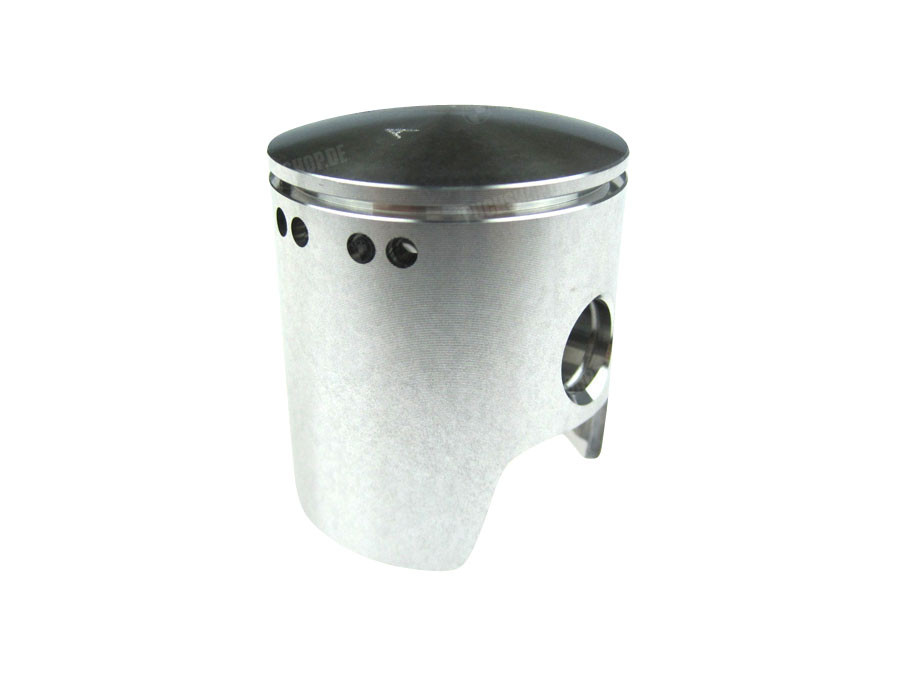

- Piston (piston pin 12mm), reed valve, manifold and gasket sets included.
- Very fast cylinder, 20mm carburetor is possible. (manifold outer diameter 24mm)
- Cylindersleeve outer diameter: 48mm
- Our advise is to order carbon oder carbonit Reed valve sheets, because steel sheets can break!
Before mounting

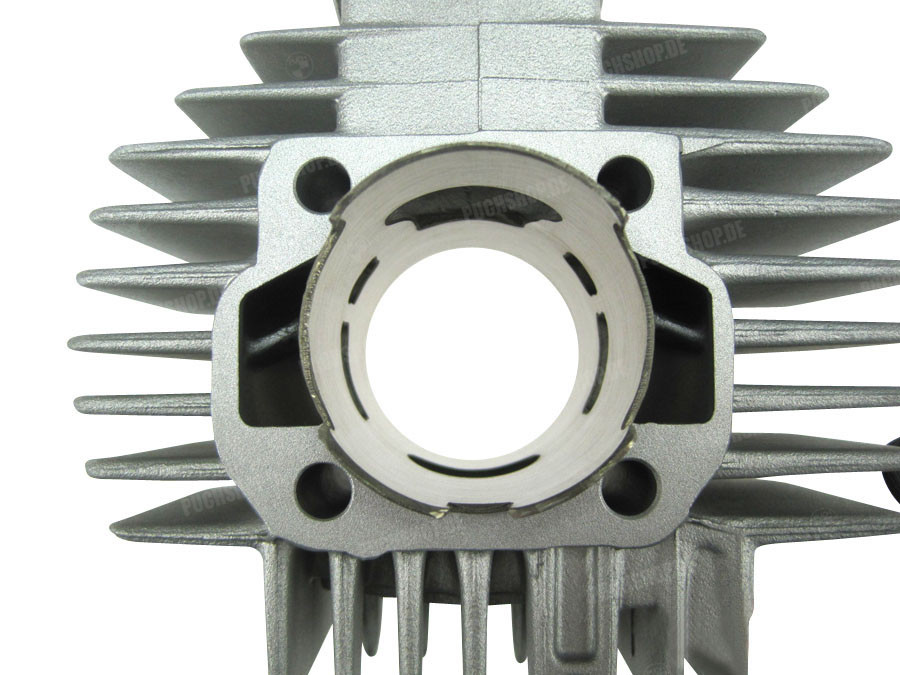

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.
Models
The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.
Are you unable to find the answer? Contact us:
E-mail WhatsApp
Product specifications
| Brand: | Athena |
| Model: | 10012 |
| Cylinder / head | |
| Cylinder displacement | 70cc |
| Cylinder diameter | 45mm |
| Cylinder model | Old model |
Info center
 | Puch Maxi cylinder and head difference old and new model + video |
 | Puch Maxi cylinder mounting | With these tips you can not go wrong! |
 | Puch cylinder installation? You should definitely not forget that! |
About Athena
Founded in 1973 as a small artisan company in Italy, Athena is today an international company that manufactures and distributes products all over the world. Athena started in the sector of industrial gaskets and over the years has developed into the brand of choice for parts for motorbikes, cars and boats, including racing parts. We know Athena mainly in Puchland for their high-quality cylinders and cylinder kits.
