Puch Maxi E50 Polini 65cc 43.5mm cylinder set with head

€ 395,00
Ex Tax: € 326,45
Puchshop Directly available Directly available
Model: 931261
Puchshop price Without shipping costs. VAT info.
Puchshop customer service

Do you need some help or advice?

Puchshop info Check out our info center or contact us!

Description

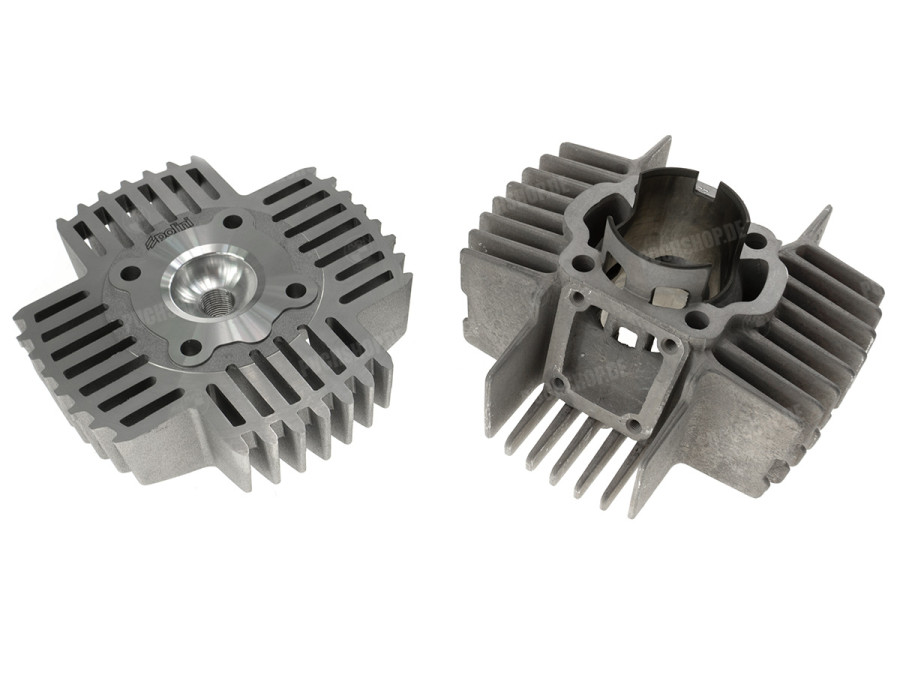

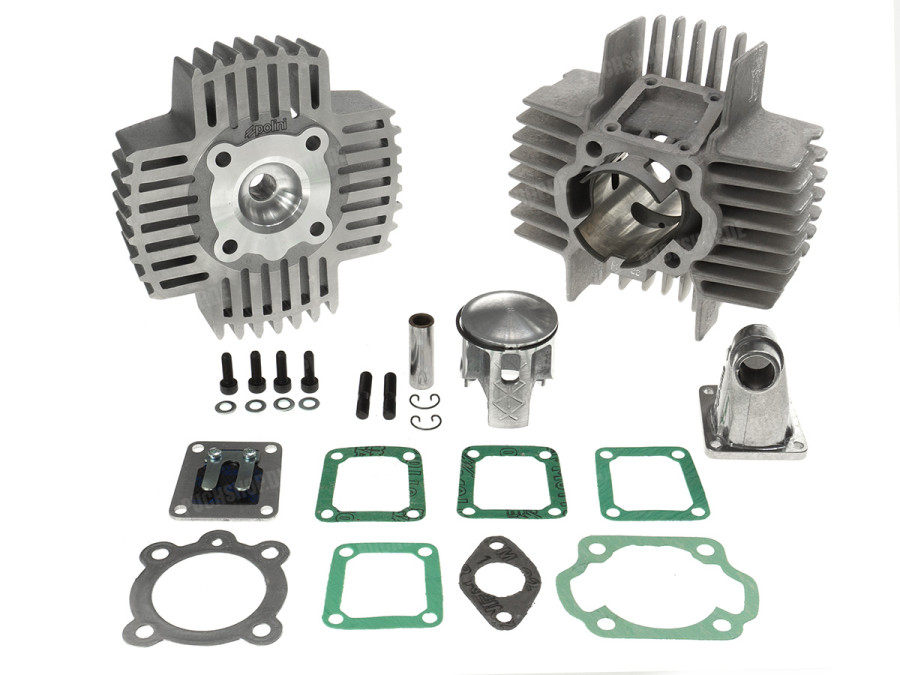

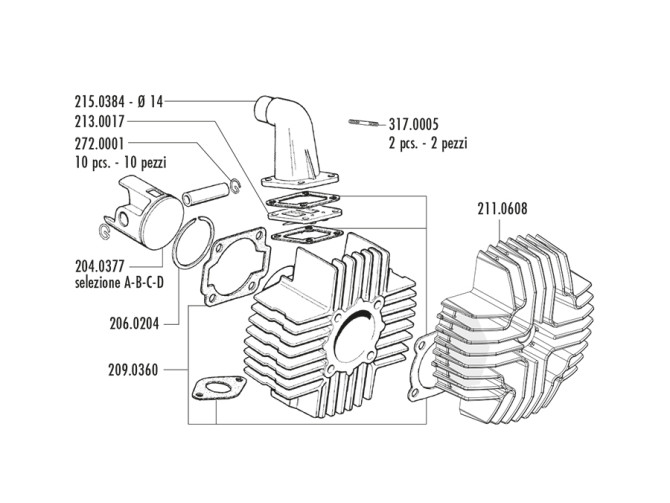

New! Polini cylinder set complete with cylinder head by Polini

The cylinder head and piston are custom-made by Polini's design department for the 65cc Puch Polini cylinder! It doesn't get any better than this! This set has been specially designed by Polini for optimal use with the Polini Big Valve 4-valve carbon reed valve and Polini CP 21mm with filter on a Puch Maxi / X30 with E50 / Z50 / ZA50 engine. Of course, the cylinder also fits on other types where the normal Maxi cylinders also fit.

  • One of the fastest aluminium cylinder for Puch Maxi E50, now improved in one package!

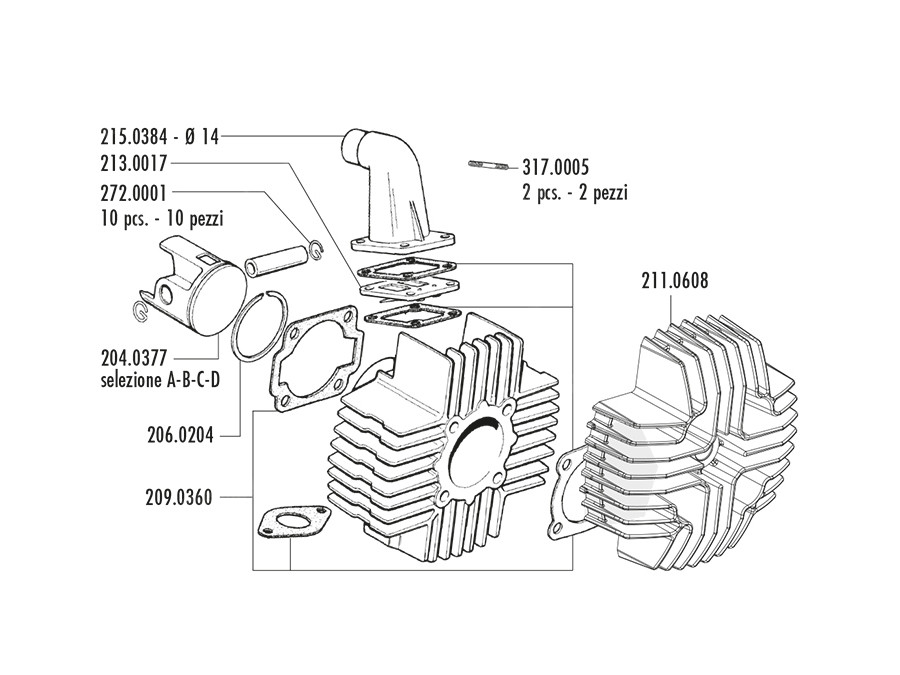

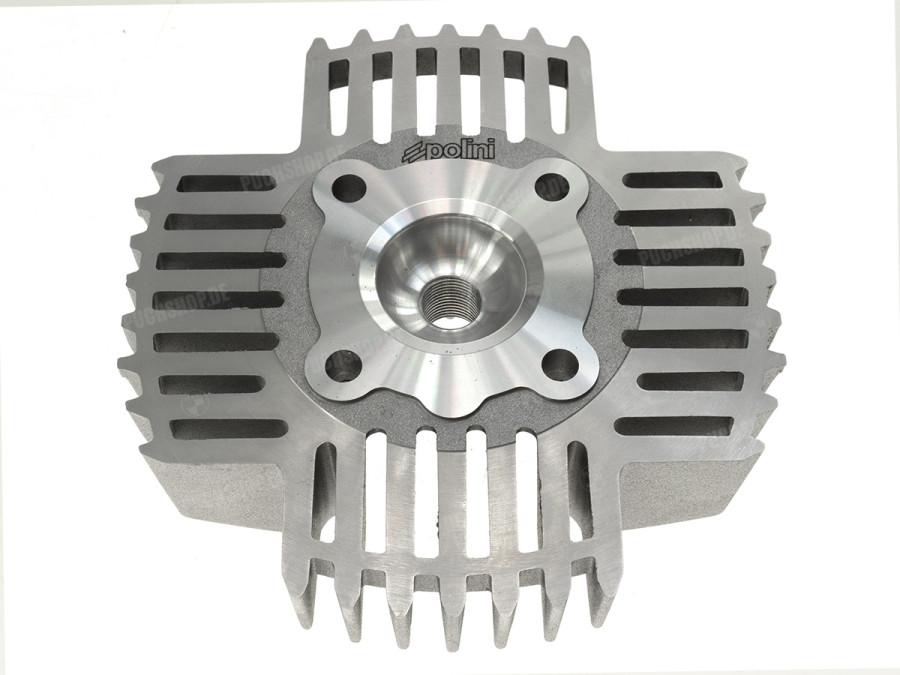

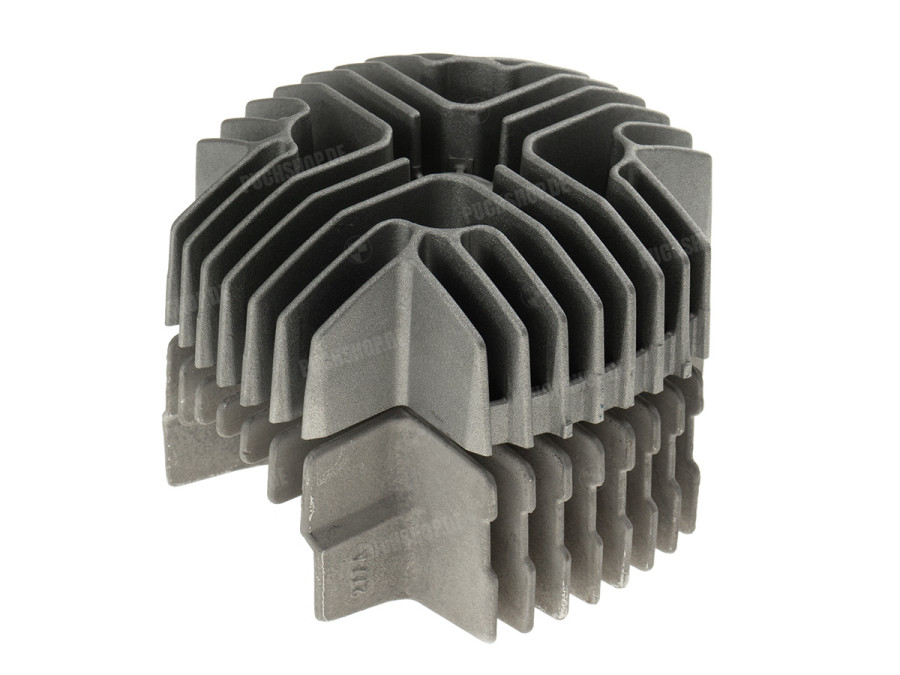

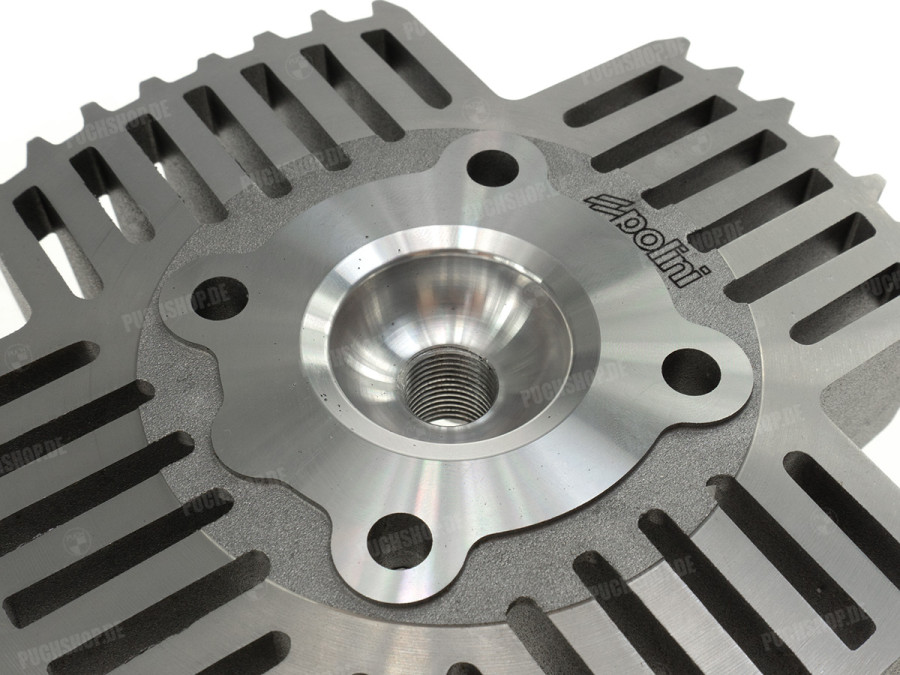

  • Polini cylinderhead (211.0608). Use a long thread spark plug, for example the NGK B9ES.

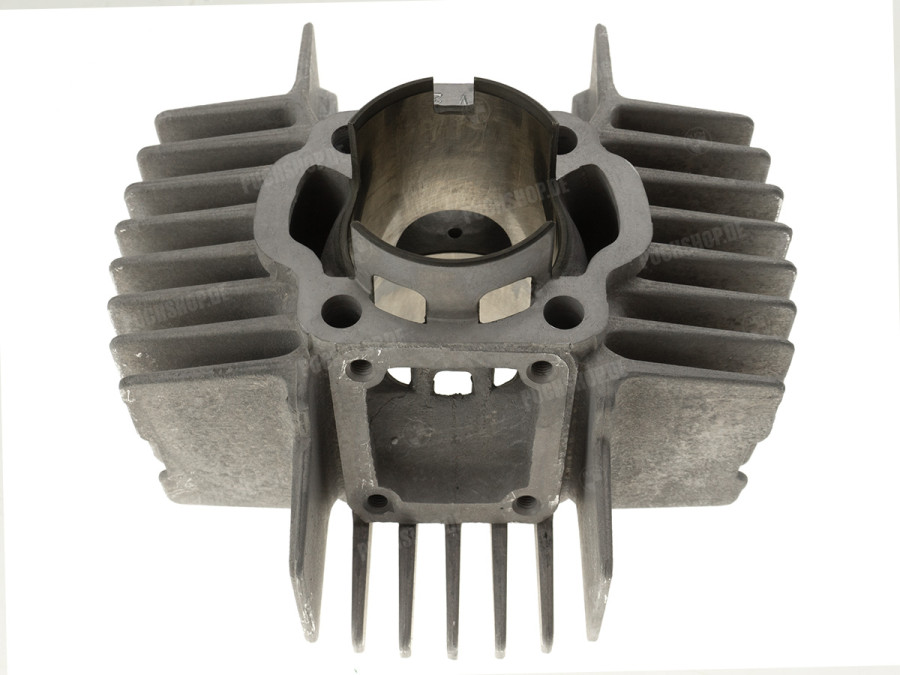

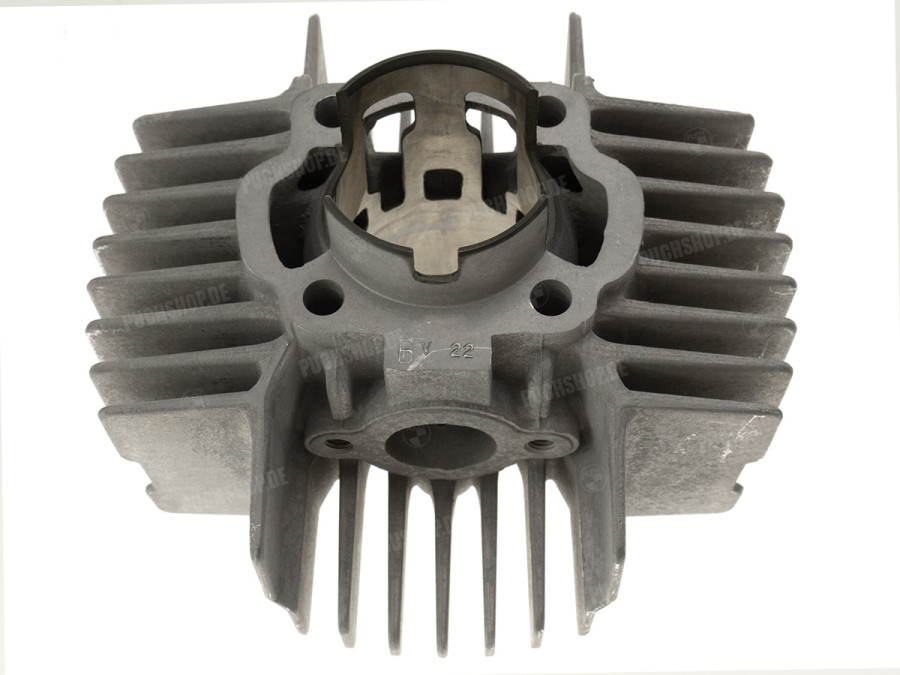

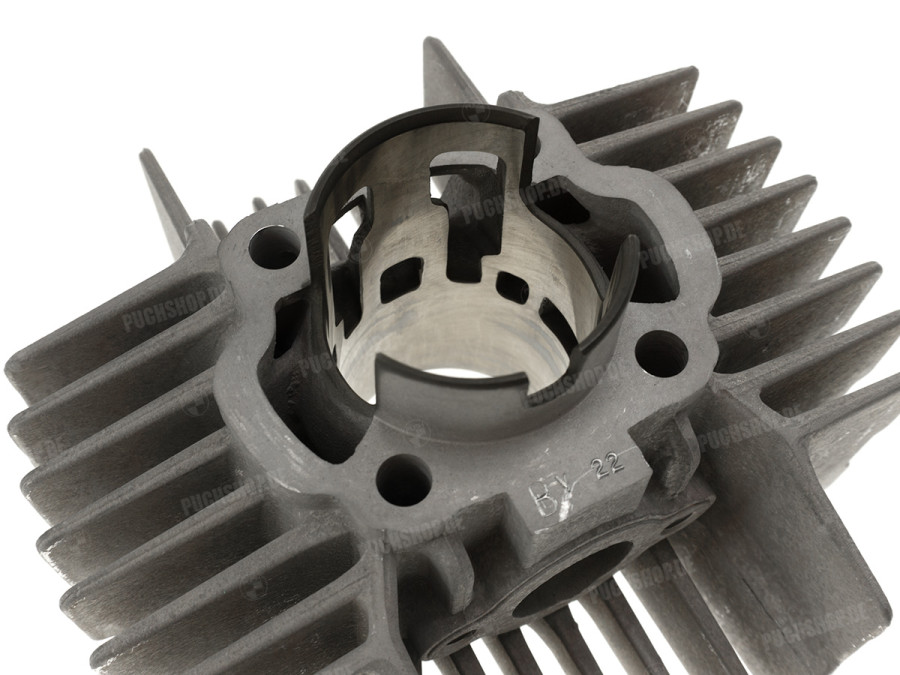

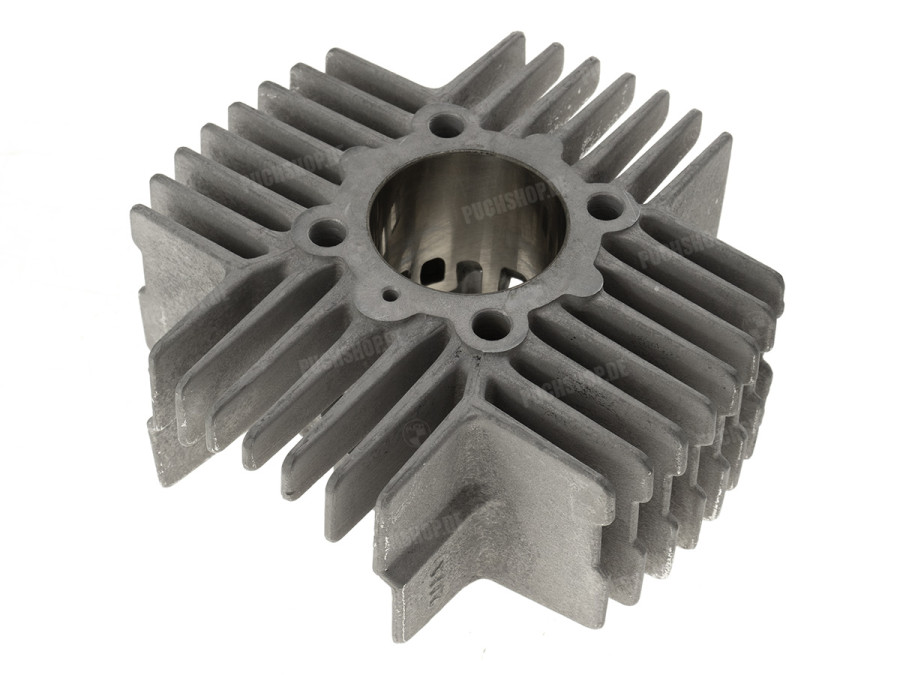

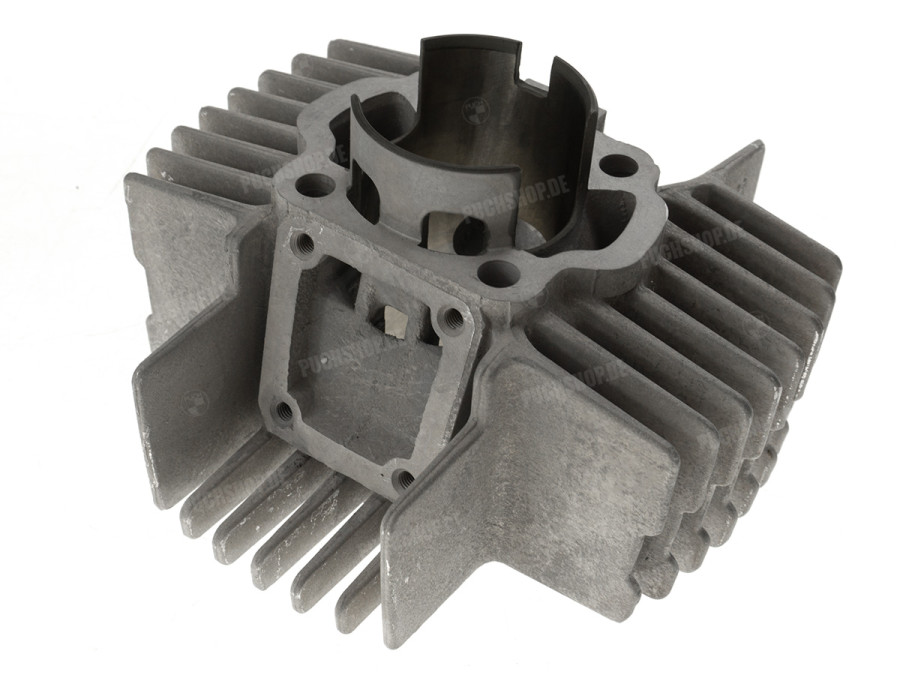

  • Polini 65cc 43.5mm cylinder with nicasil wall (144.0150)

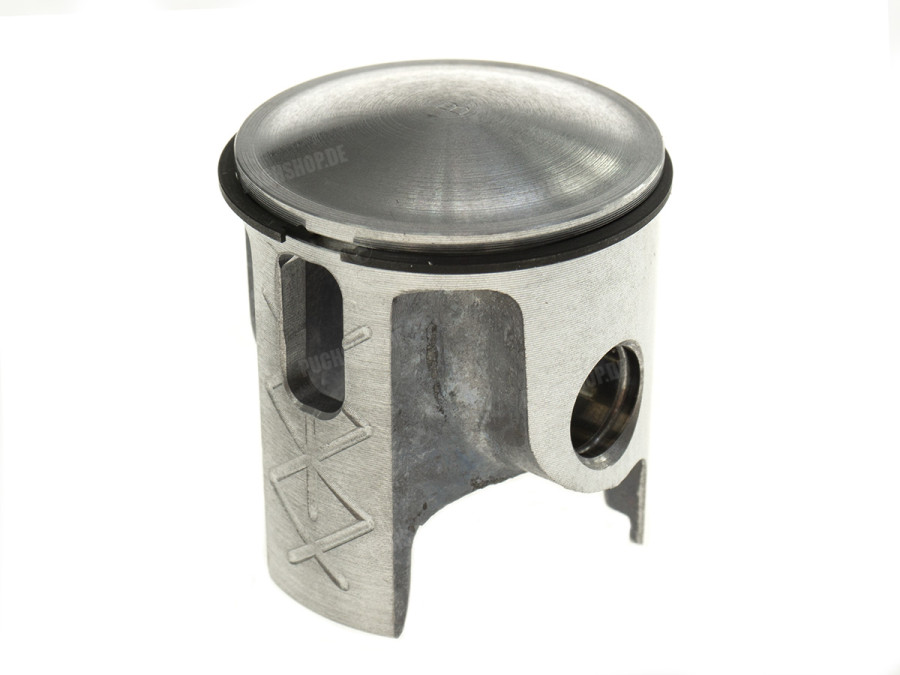

  • Special modified Polini piston for this set (piston pin 12mm)

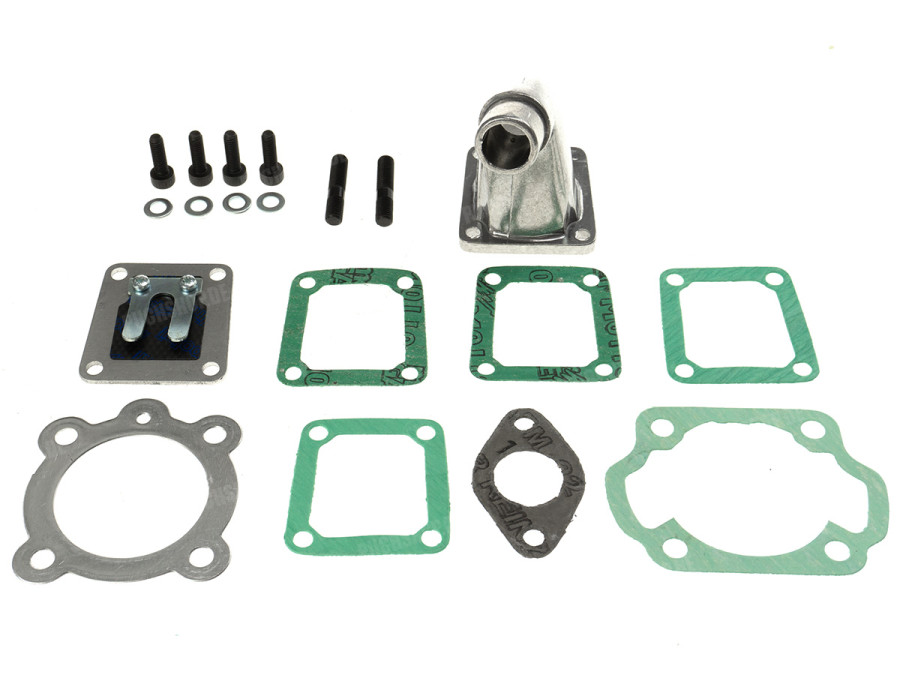

  • Carbon reed valve (213.0017)
  • Manifold (20mm outer diameter)
  • Complete with gaskets
  • Cylindersleeve outer diameter: 48mm
  • Polini number 144.0151

Attention! Very sensable cylinder!

  • Fit the cylinder with 8 Nm, fit the gaskets in the intake pipe with liquid gasket and do not tighten too tightly. Then you will have a cylinder that lasts a long time and is very fast.

Before mounting

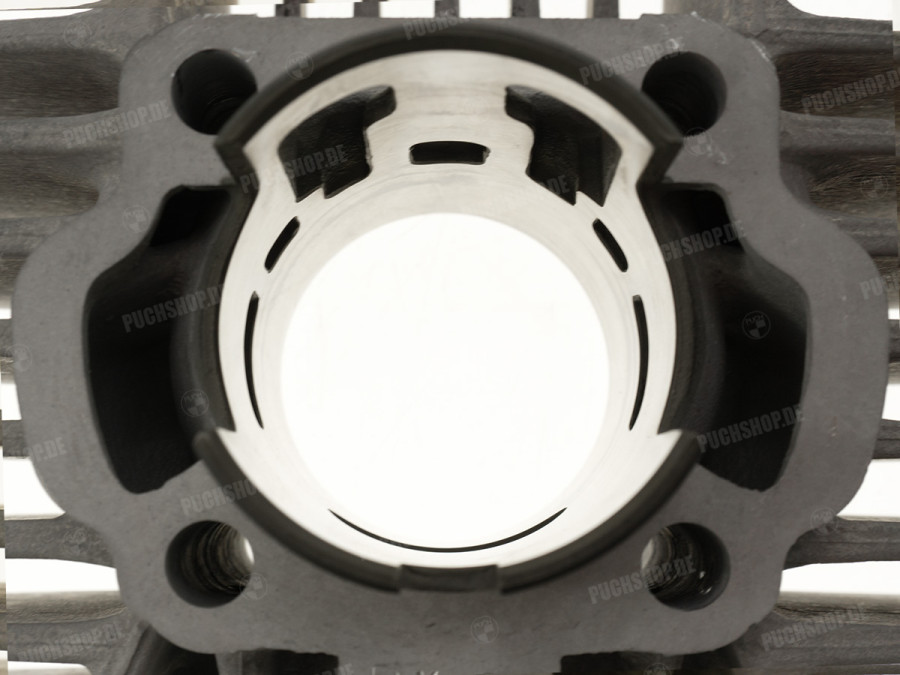

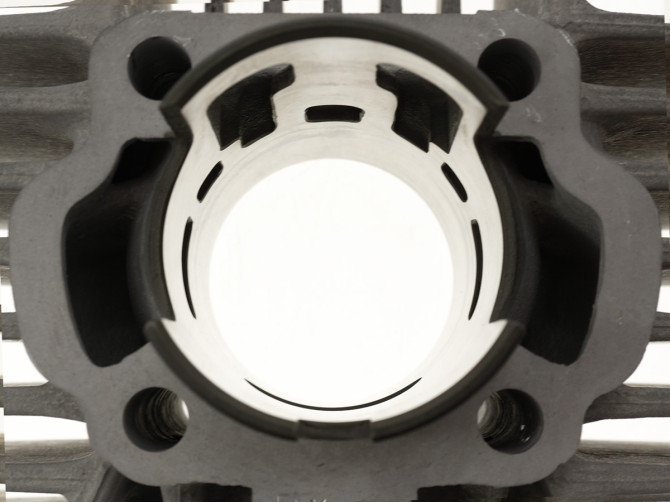

  • We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

  • The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

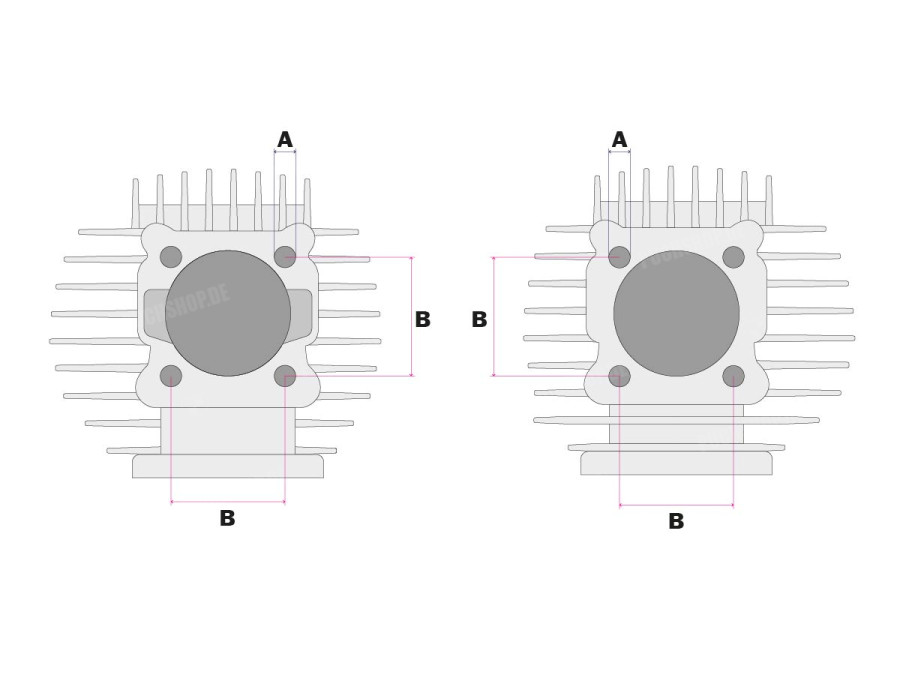

Measurements cylinder

  • A: 7mm
  • B: 44mm
  • C: M6
  • D: 68mm
  • E: 22mm
  • F: 42mm
  • G: M4
  • H: 36mm
  • I: 35mm
  • J: 38mm
  • K: -
View more Read more
Brand:Polini
Model:931261
MPN:144.0151
Category: Engine parts
Type product: Cylinder / head
Type product: Cylinders
Cylinder / head
Cylinder displacement:65cc
Cylinder diameter:43.5mm
Cylinder model:New model
Weight:2000 gram

Polini! Tuning your moped can be done in several ways. Tuning and modifying your moped lightly or heavily. With Polini for Puch, you always go one step further. Polini has been well-known in the moped and motorbike world for 80 years. Founded in Italy by Battista Polini in 1940, started with the idea that mopeds and motorbikes could be made better for racing than original. Engines and mopeds heavily tuned for racing with very high quality became a reality. Polini parts for Puch can be bought within each category. Polini makes cylinder sets for Puch, reedvalves, exhausts, ignitions, air filters for Puch, brake segments for Puch, carburetor, clutch for Puch, crankshaft, crankcases and gaskets. Unique parts like e.g. the Polini CP Carburettors, from 15mm clamp version to 21mm spigot can be bought at puchshop.de (Click here for our entire Polini range)
