Advice from Puch expertsCylinder 50cc pin 12 Puch MV / VS / DS / MS / X30 NG2AH
-14%
-14%
- € 49,00 (14% discount)
- € 41,90
- Ex Tax: € 34,63
Read more about the European VAT rules
- Directly available
- Model: 10063
Description

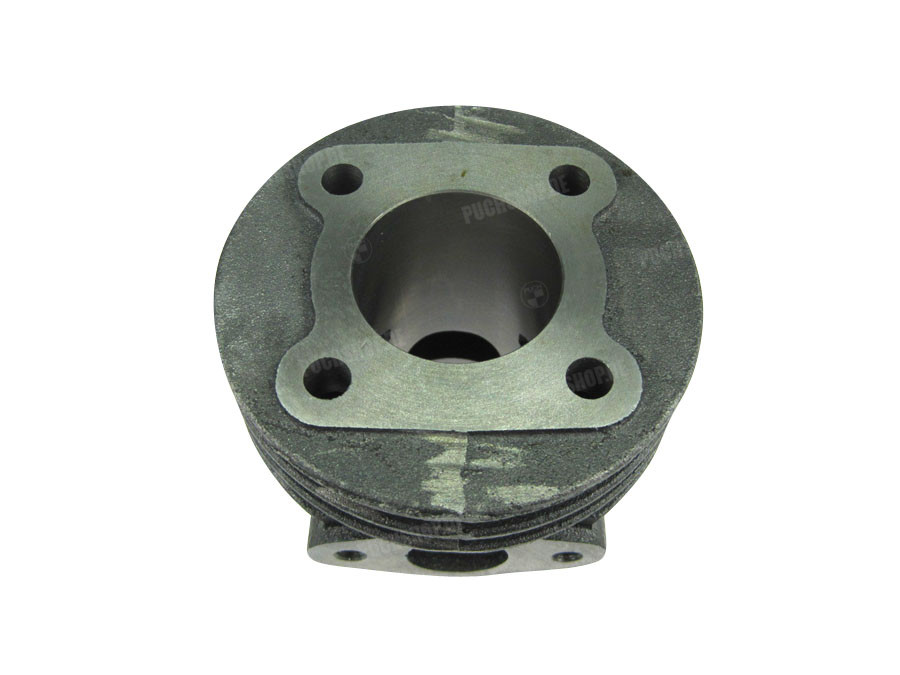

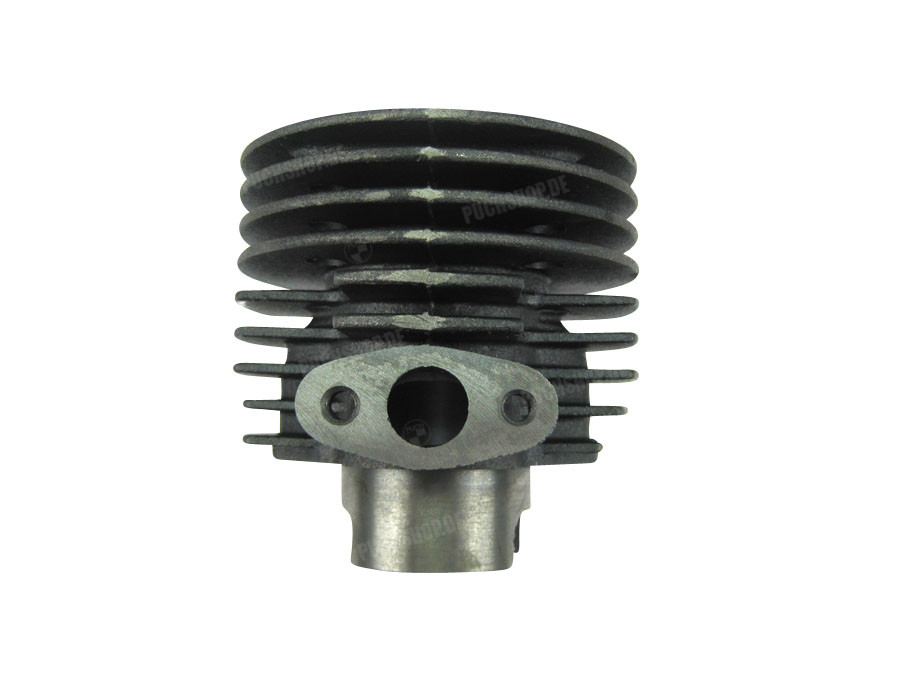

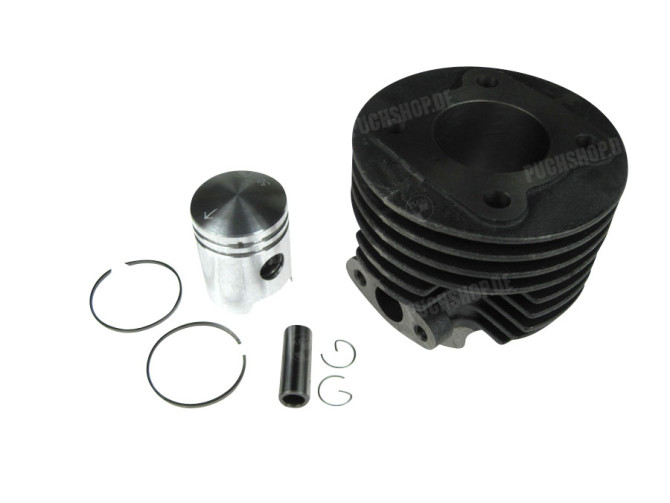

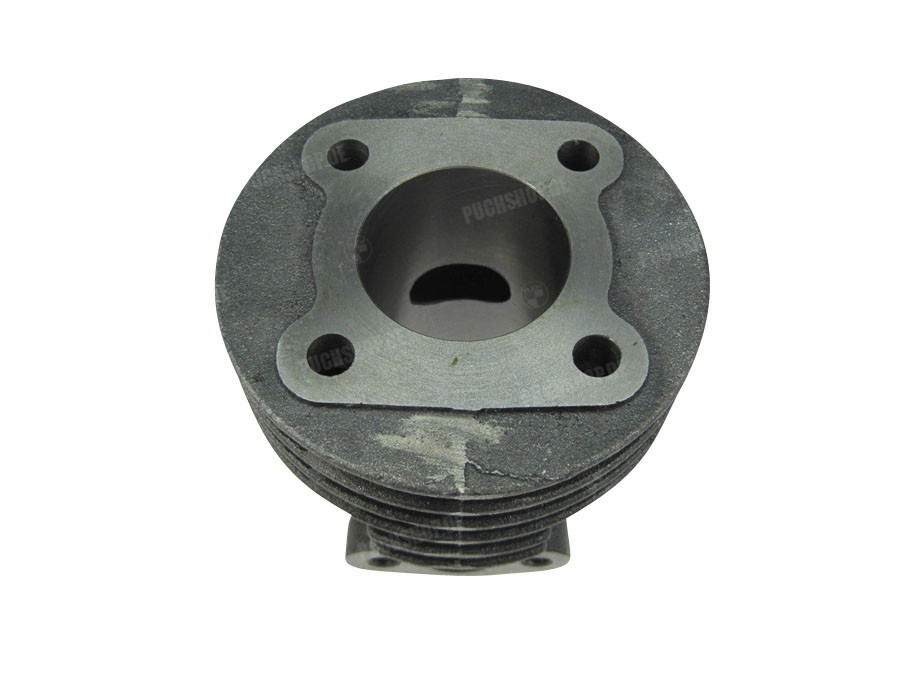

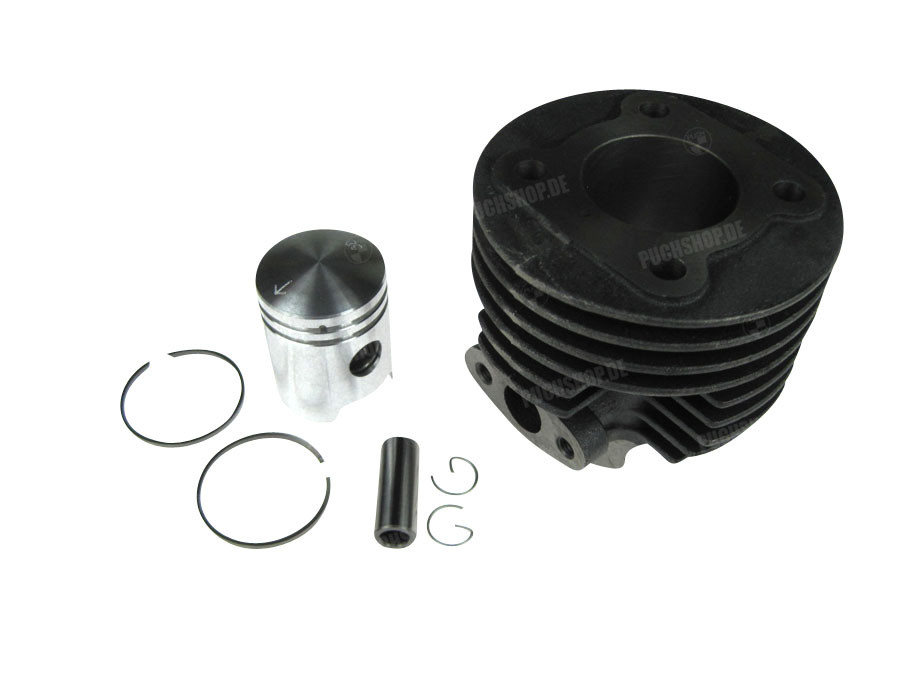

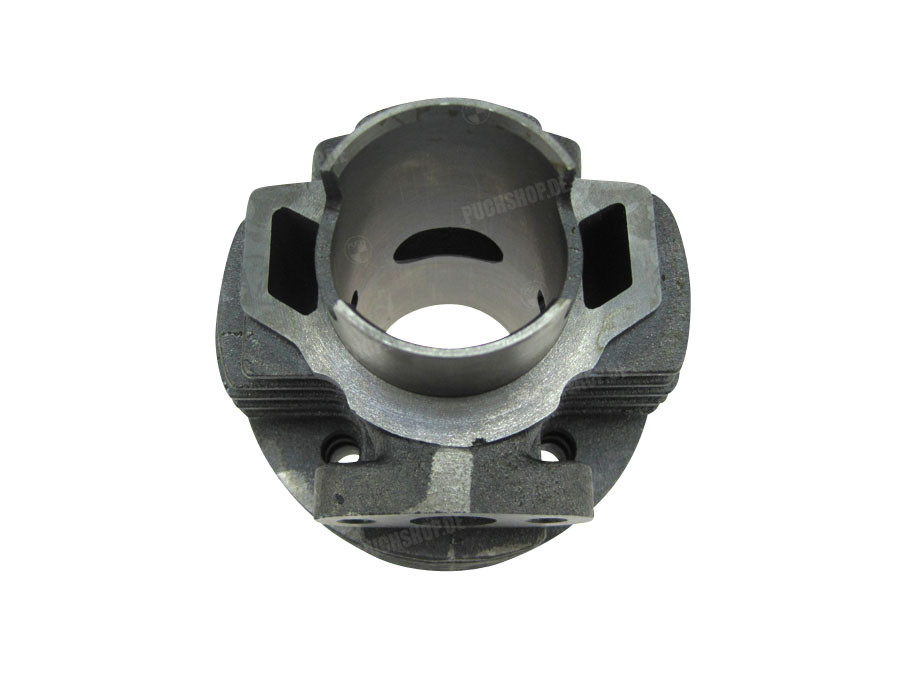

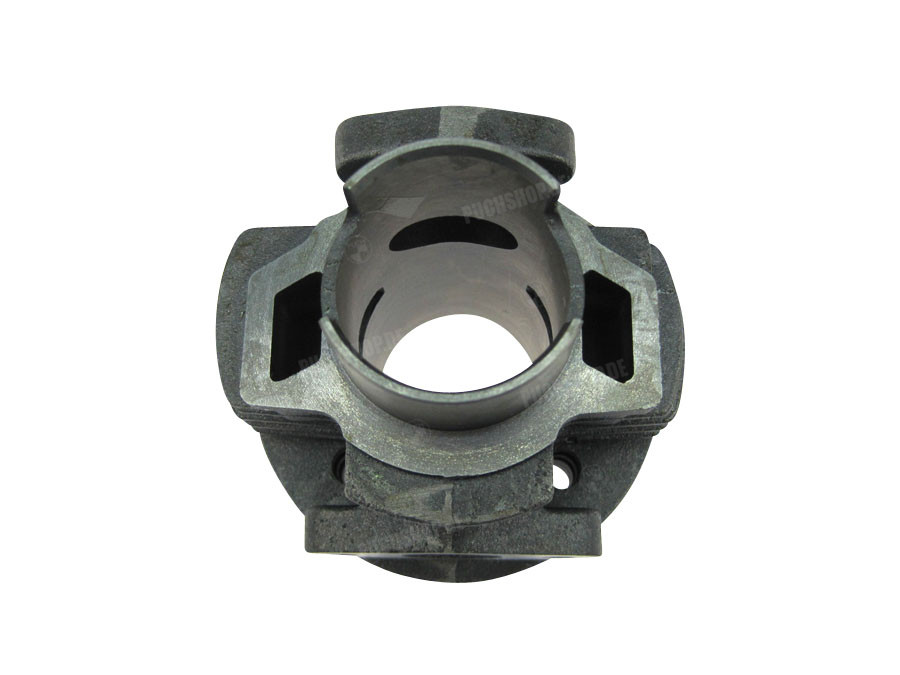

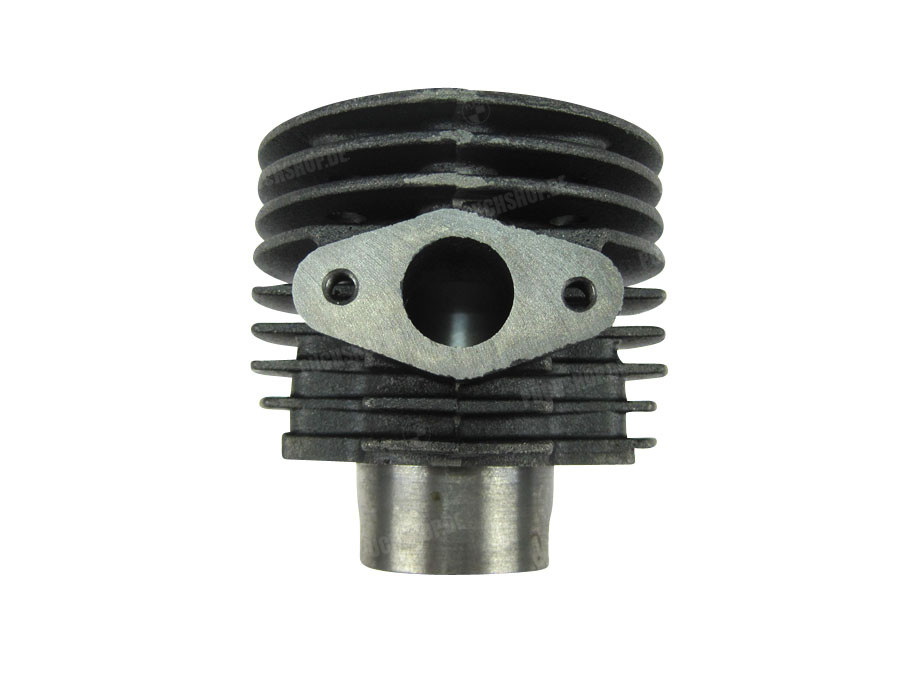

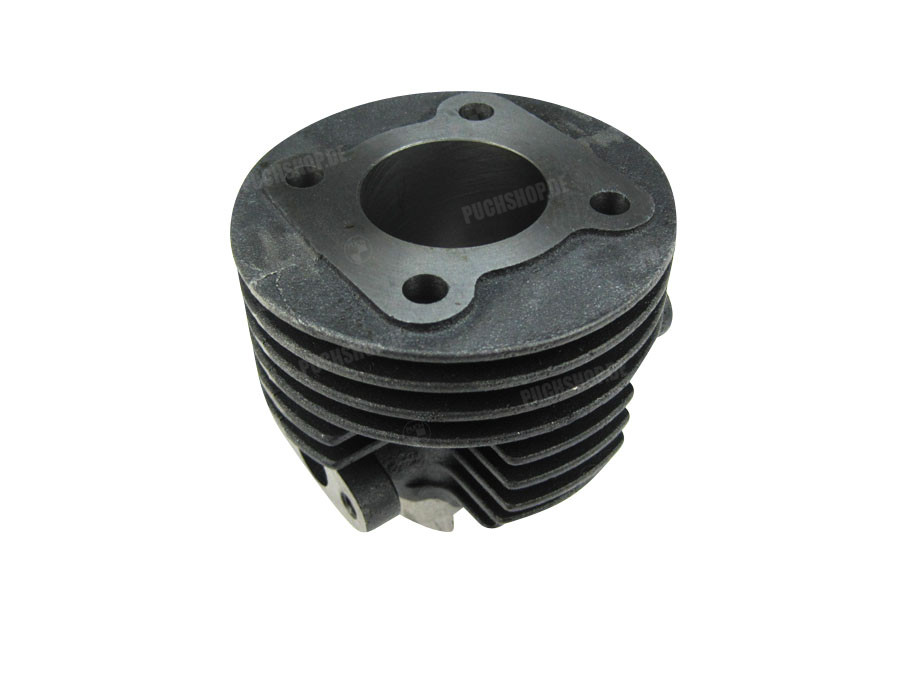

Cyilinder 38mm Puch MV / VS / DS / MS.
- Cast iron 38mm/50cc.

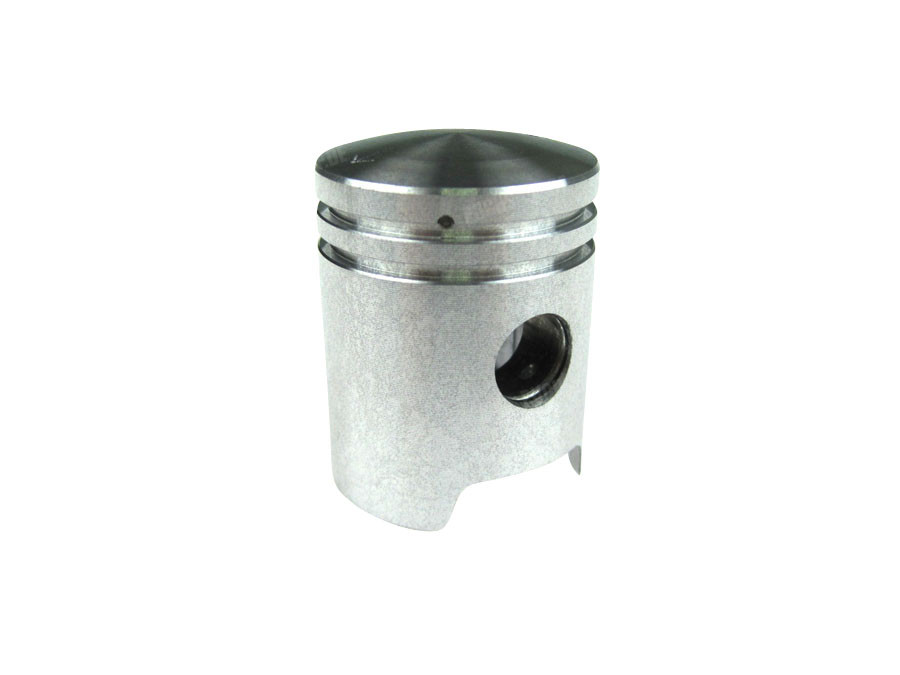

- With piston with 2 block piston rings
- Complete with piston (12mm pen).
- Without gaskets.
- 14mm Inlet
- Also for Puch X30 NG2AH
We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.
Measurements cylinder
- A: 7mm
- B: 44mm
- C: M6
- D: 68mm
- E: 19mm
- F: 42mm
- G: M6
- H: 32mm
- I: 14mm
- J: 14mm
- K: 14mm
Measurements piston
- A: 3mm
- B: 22mm
- C: 24mm
- D: 12mm
Do you have a question? Check out our Info center and maybe you will find the answer
Are you unable to find the answer? Contact us:
E-mail WhatsApp
Are you unable to find the answer? Contact us:
E-mail WhatsApp
Product specifications Cylinder 50cc pin 12 Puch MV / VS / DS / MS / X30 NG2AH
| Model: | 10063 |
| EAN: | 7421083789591 |
| Cylinder / head | |
| Cylinder displacement | 50cc |
| Cylinder diameter | 38mm |
| Cylinder model | MV / VS / MS / DS |
